Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm System Transponder
>>

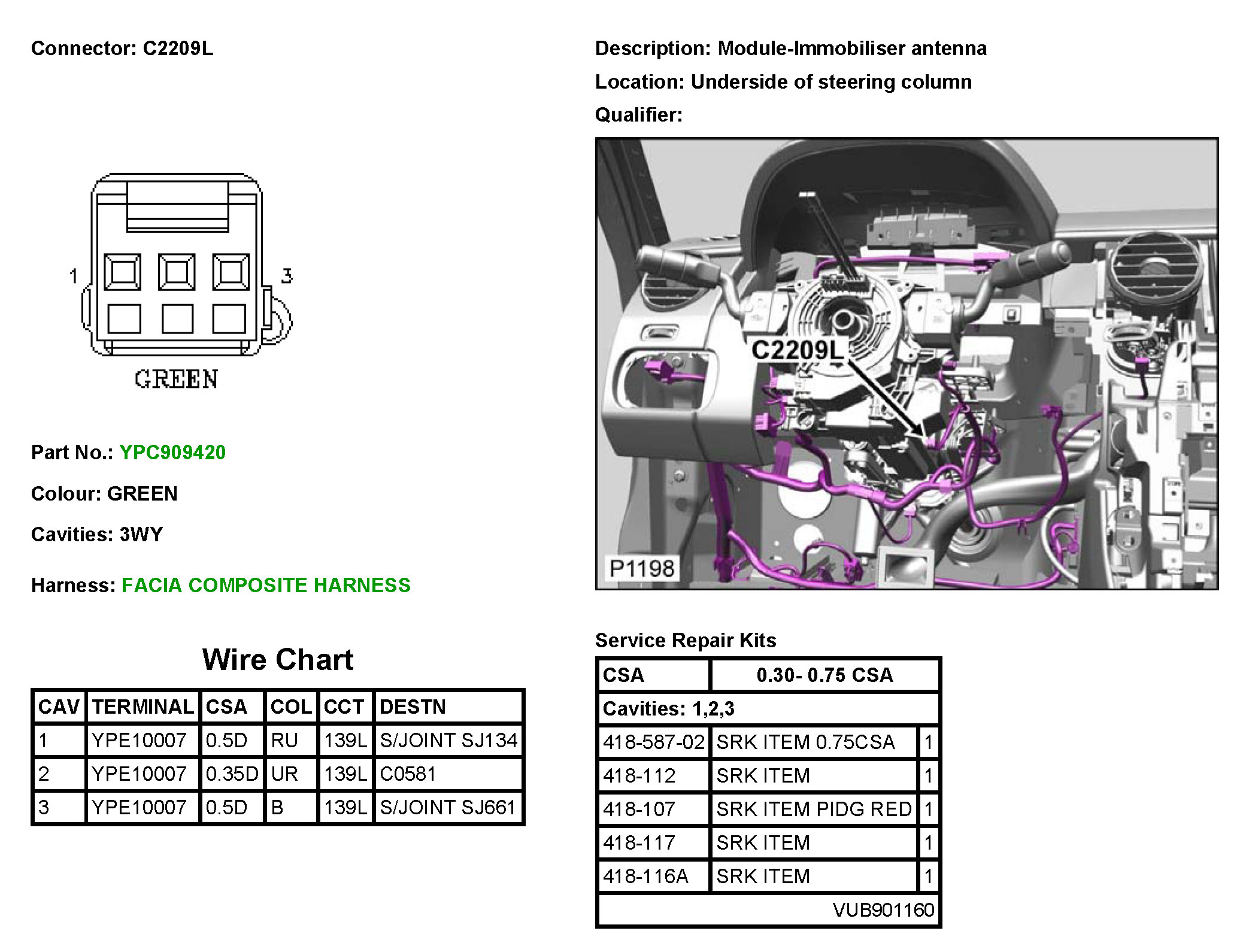

C2209L Module-Immobilizer Antenna
C2209L Module-Immobilizer Antenna
C2209L
