Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

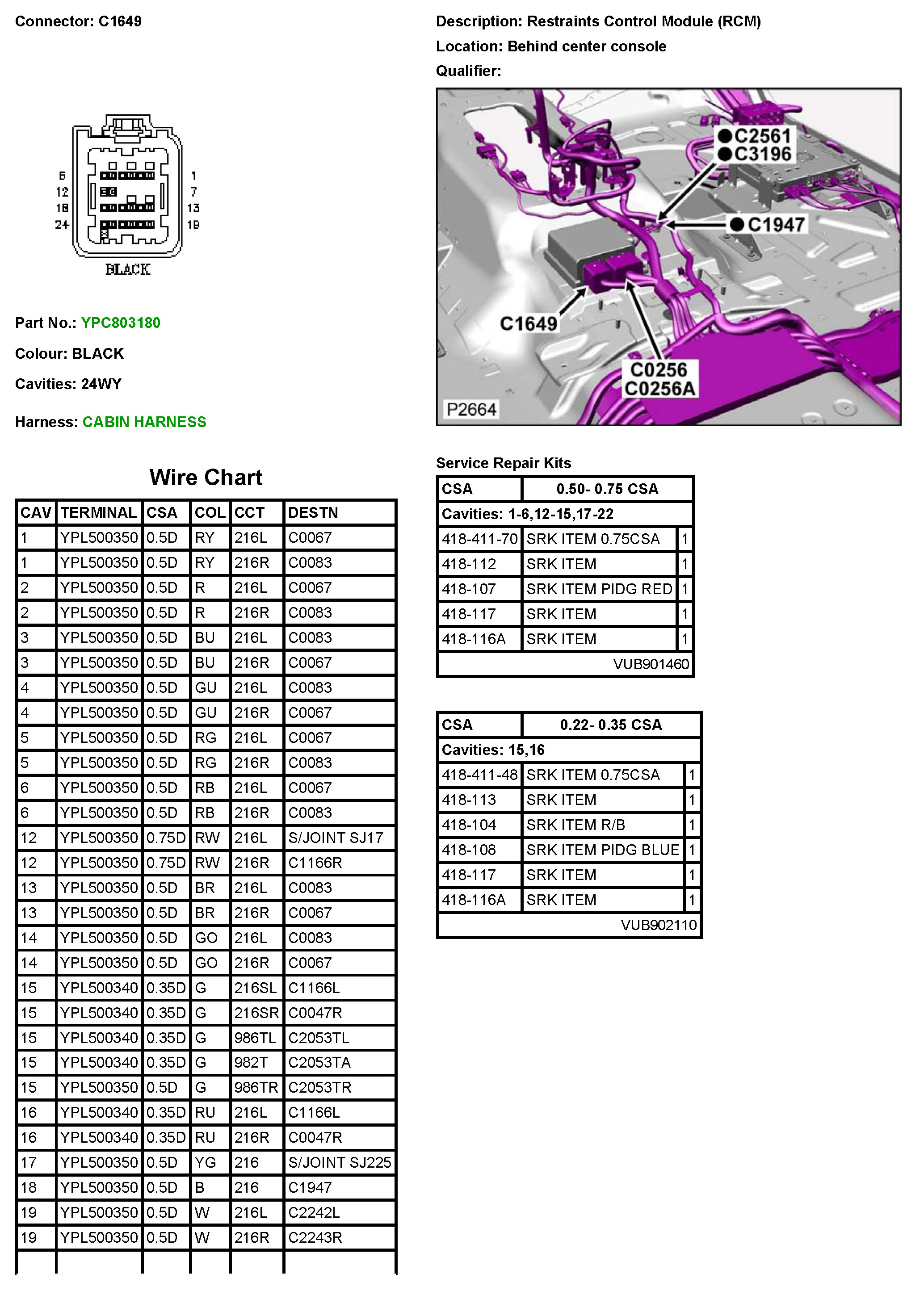

Air Bag Control Module
>>
C1649 Restraints Control Module (RCM)
C1649 Restraints Control Module (RCM)
C1649
