Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

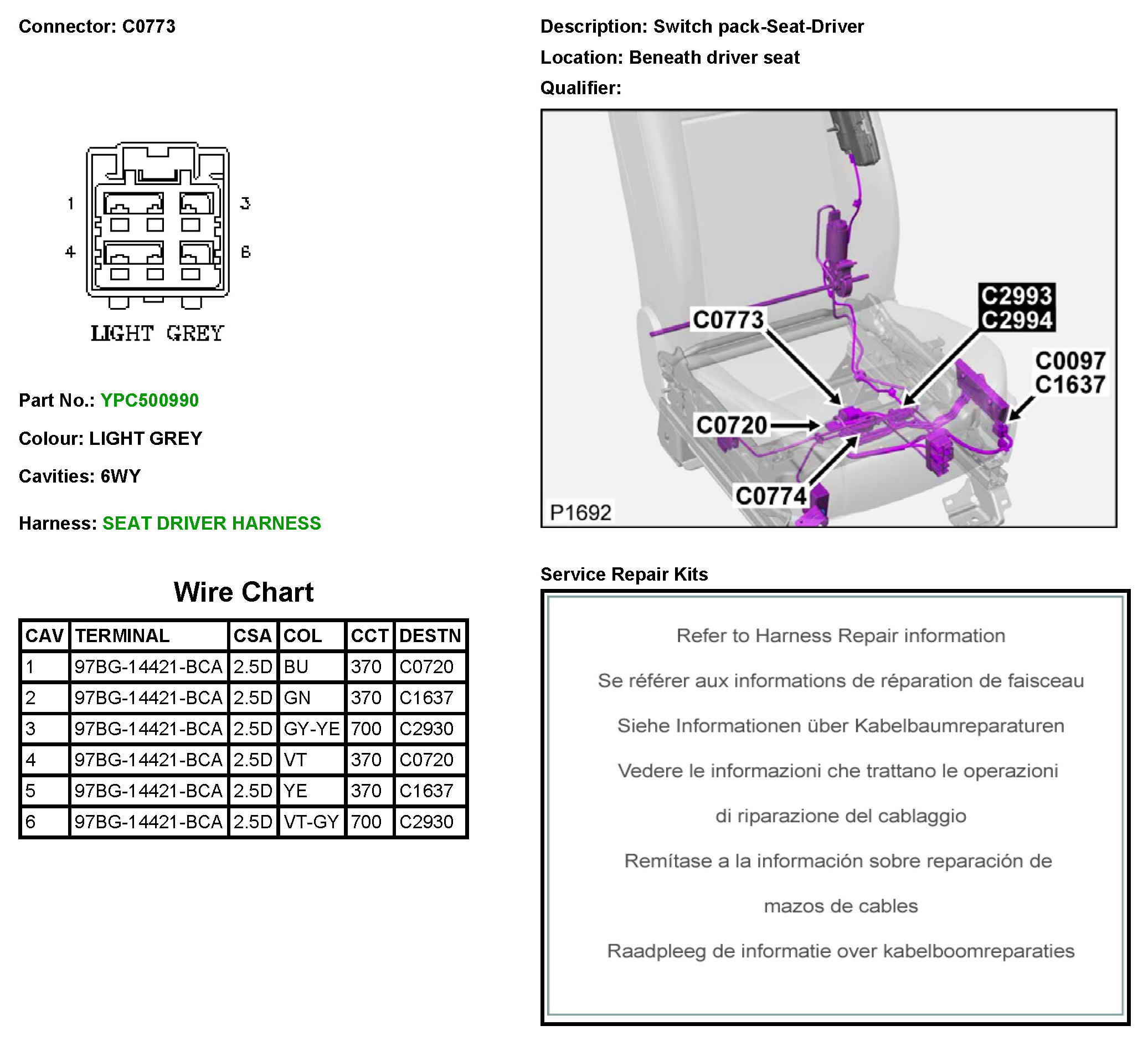

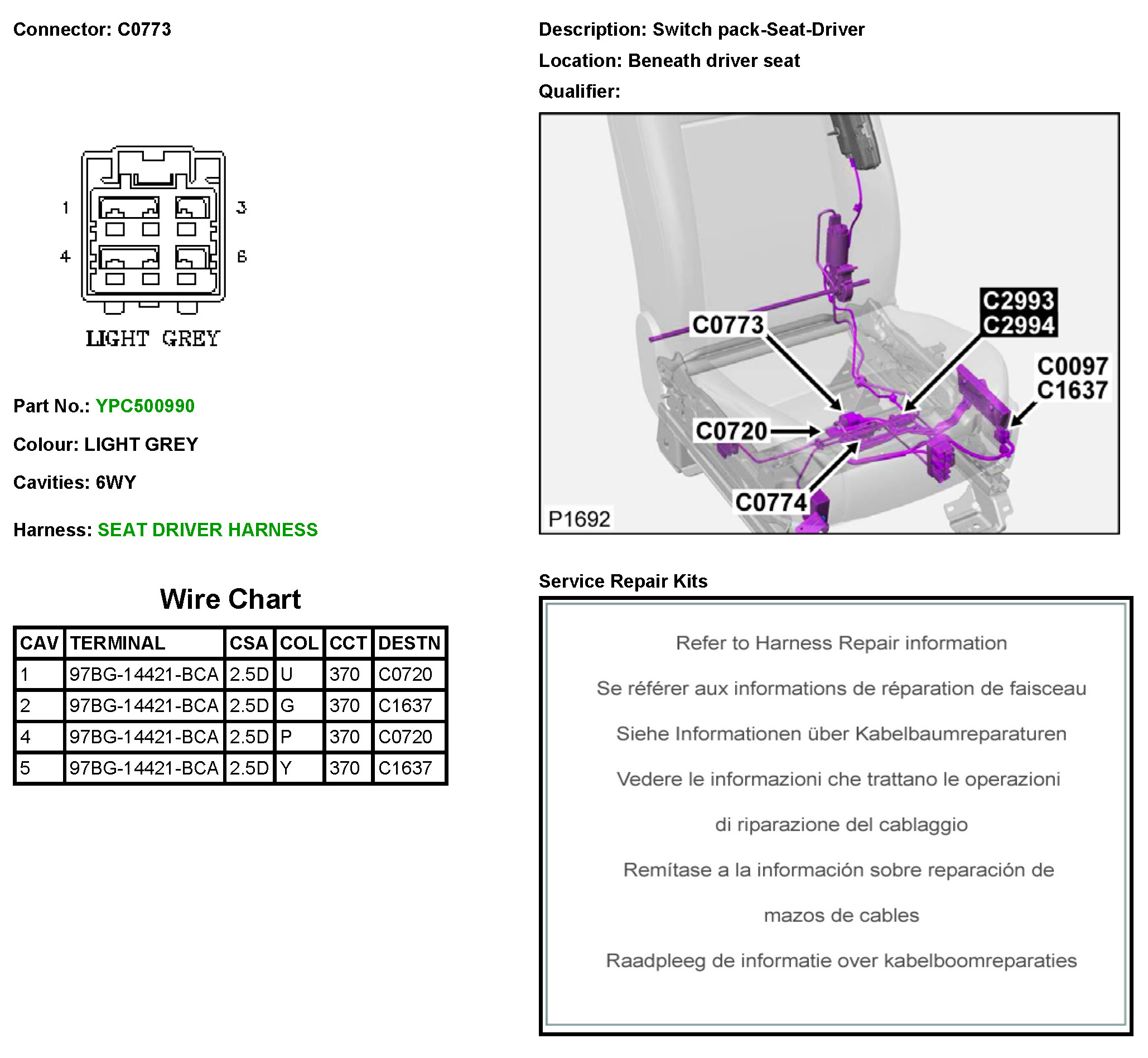

C0773 Switch Pack-Seat-Driver
C0773 Switch Pack-Seat-Driver
C0773
