Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

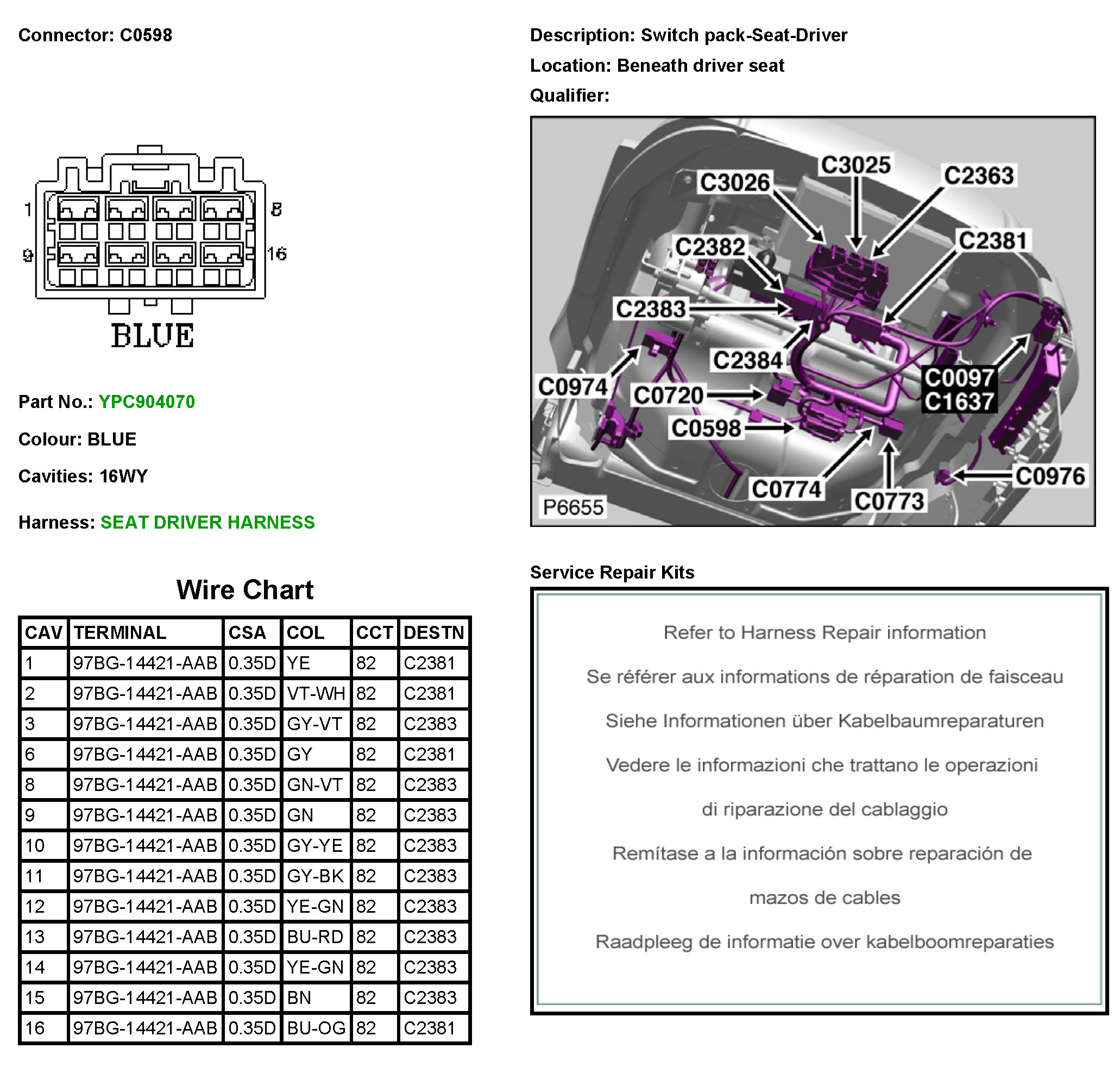

C0598 Switch Pack-Seat-Driver

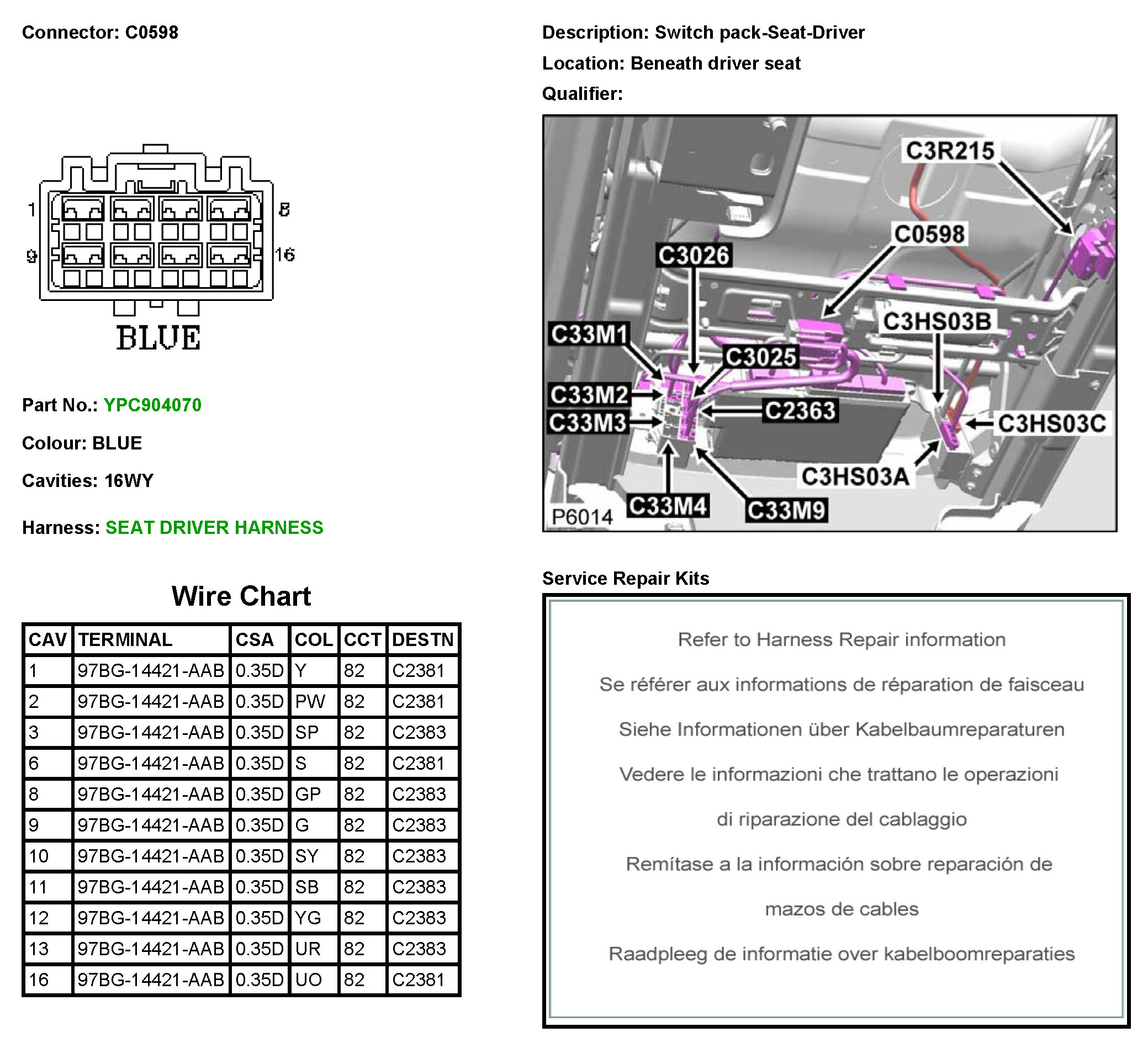

C0598 Switch Pack-Seat-Driver
C0598
