Impact Sensor
>>

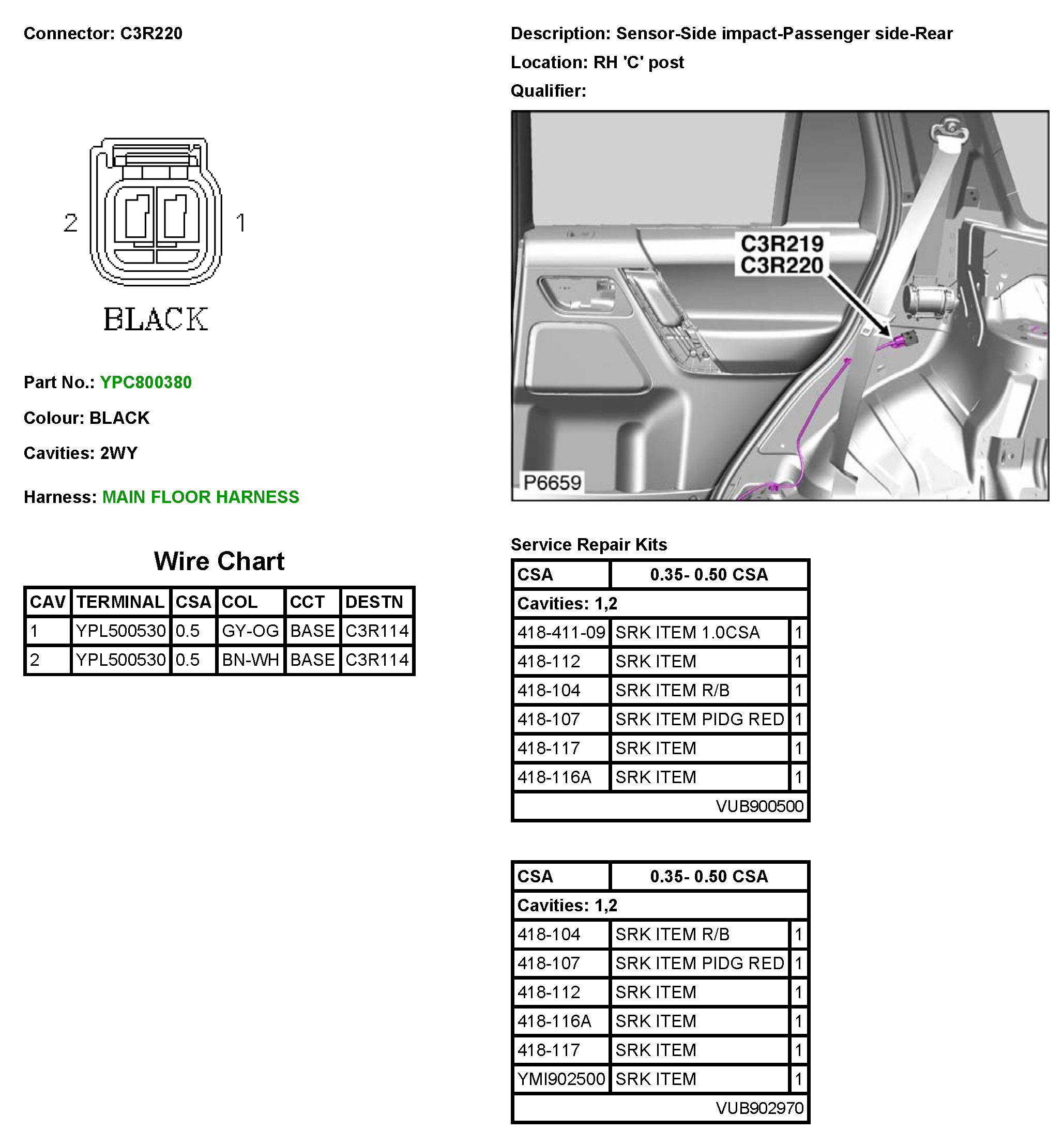

C3R220 Sensor-Side Impact-Passenger Side-Rear
C3R220 Sensor-Side Impact-Passenger Side-Rear
C3R220
