Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

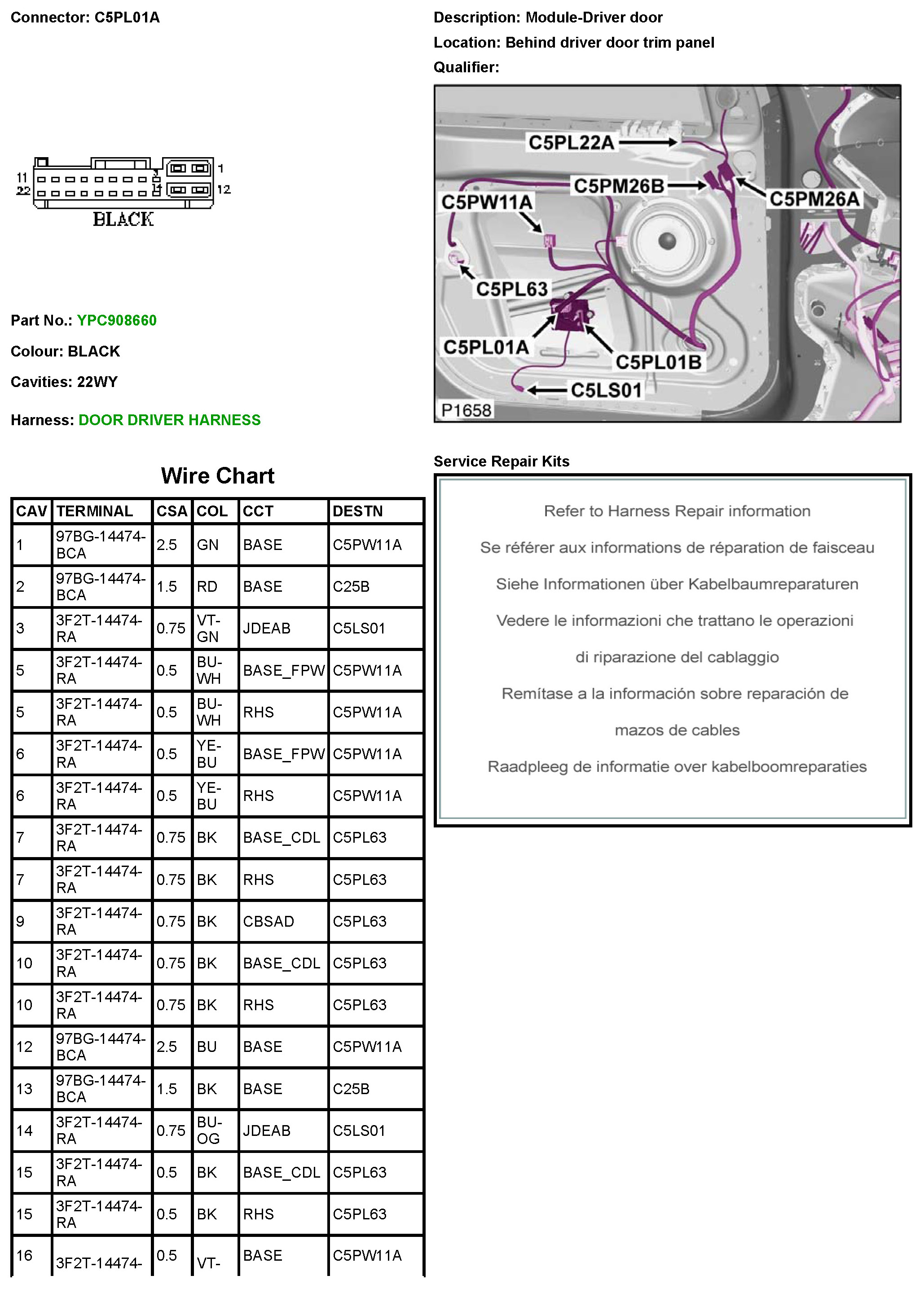

C5PL01A Module-Driver Door
C5PL01A Module-Driver Door
C5PL01A
