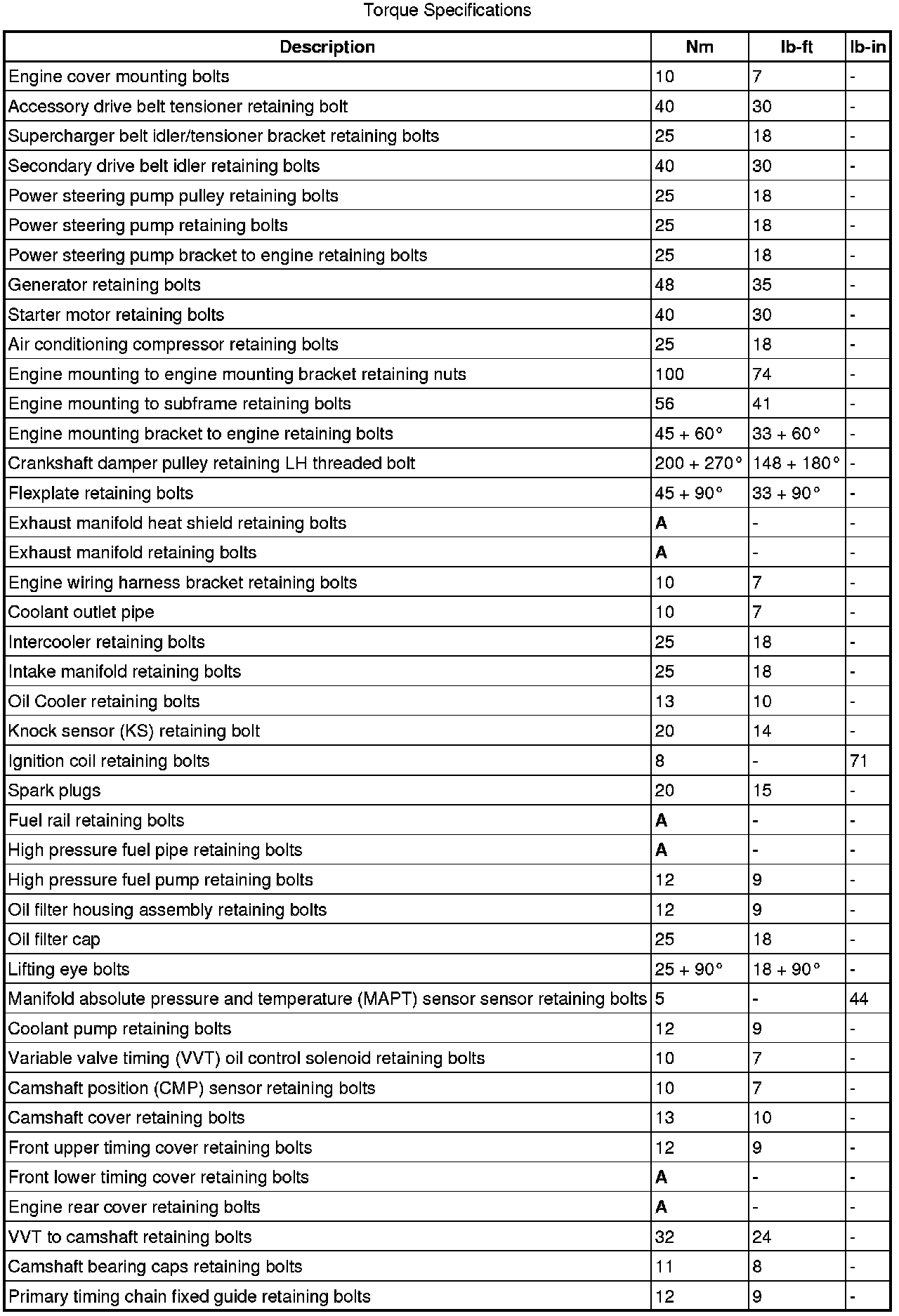

System Specifications






Specifications























NOTE:
A = Refer to procedure for correct torque sequence.
