Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3603-C3627
>>
C3614
C3614
C3614

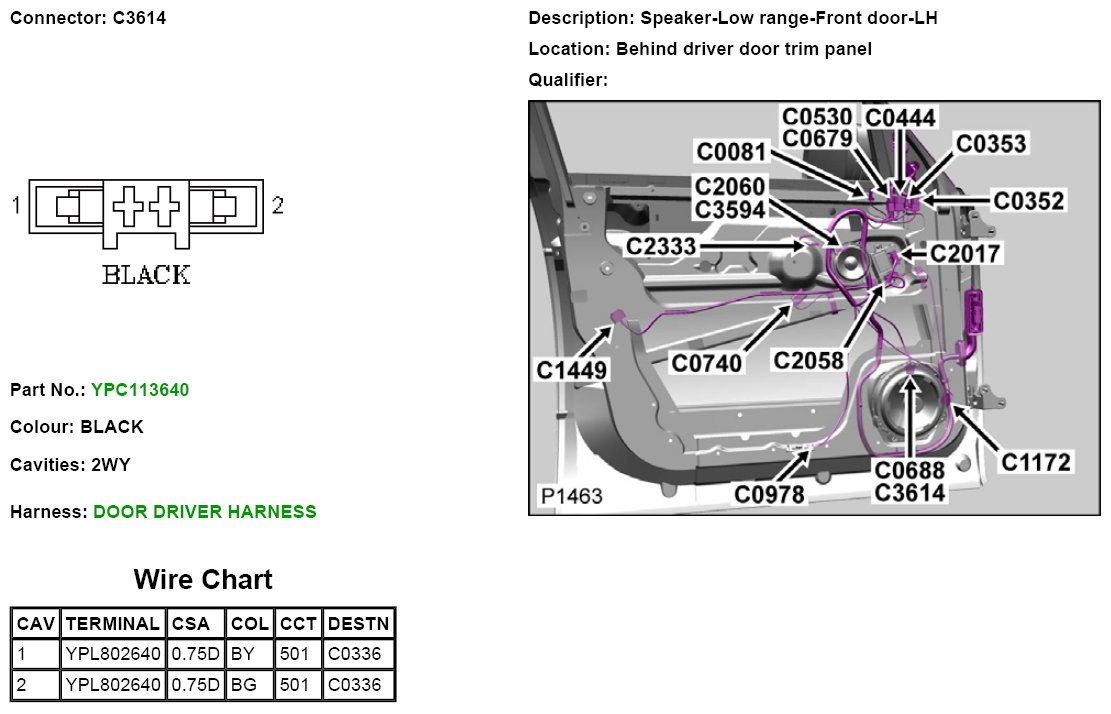

C3614:
