Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2011
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3509-C3594
>>
C3593
C3593
C3593

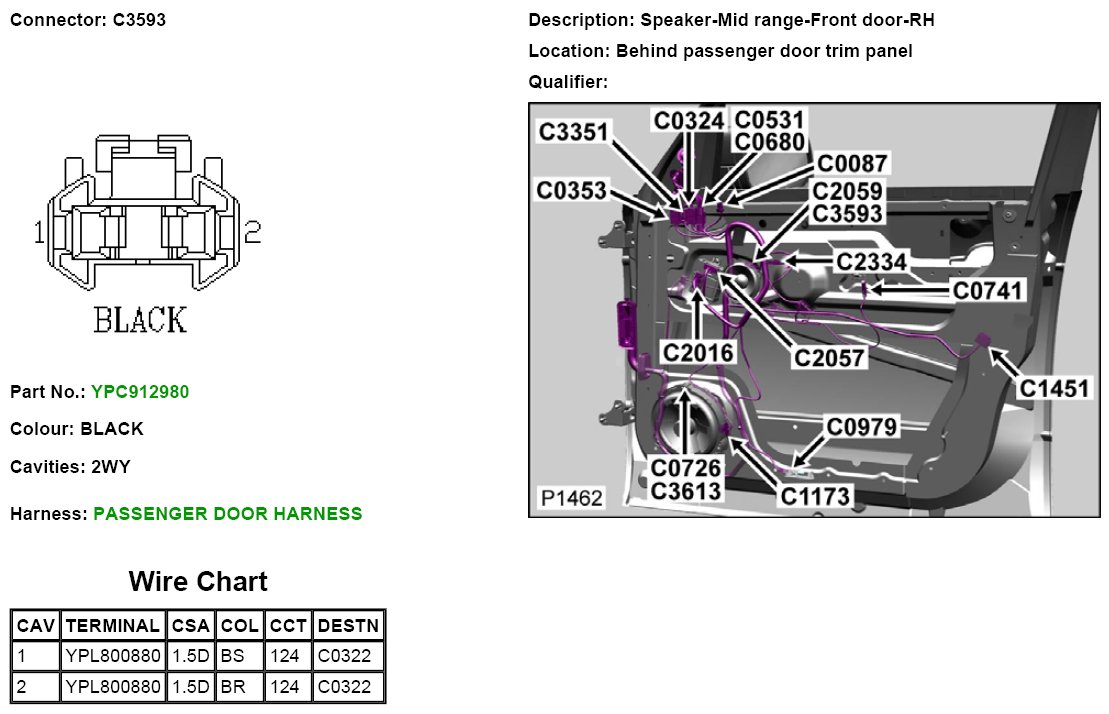

C3593:
