Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3509-C3594
>>
C3521
C3521
C3521

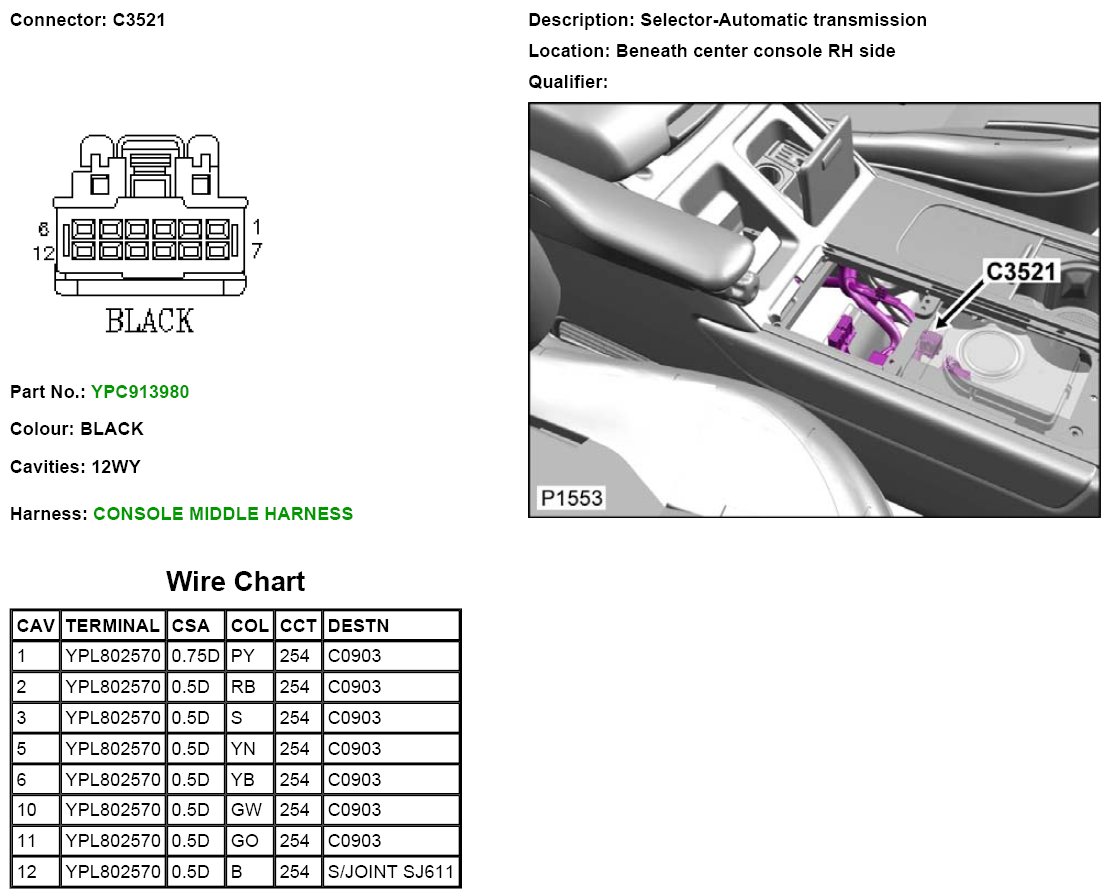

C3521:
