Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3401-C3499
>>

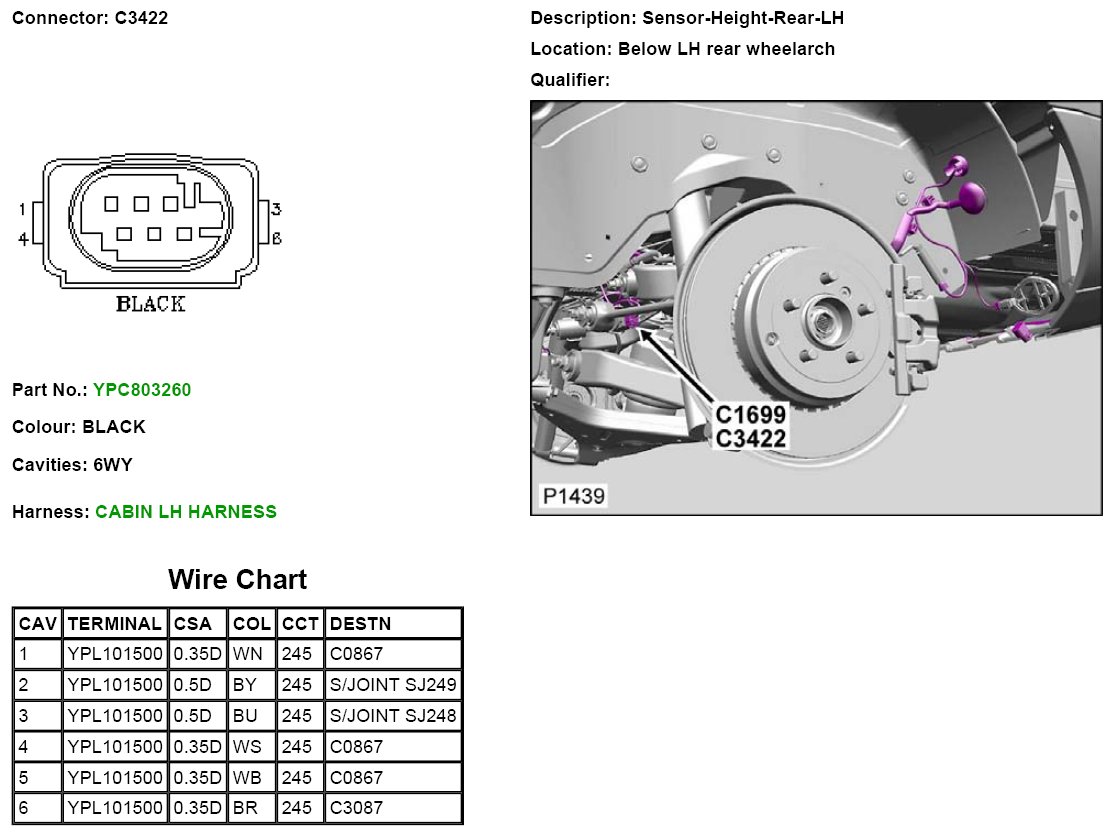

C3422
C3422
C3422
C3422:
