Land Rover
>>
2011
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3308-C3394
>>

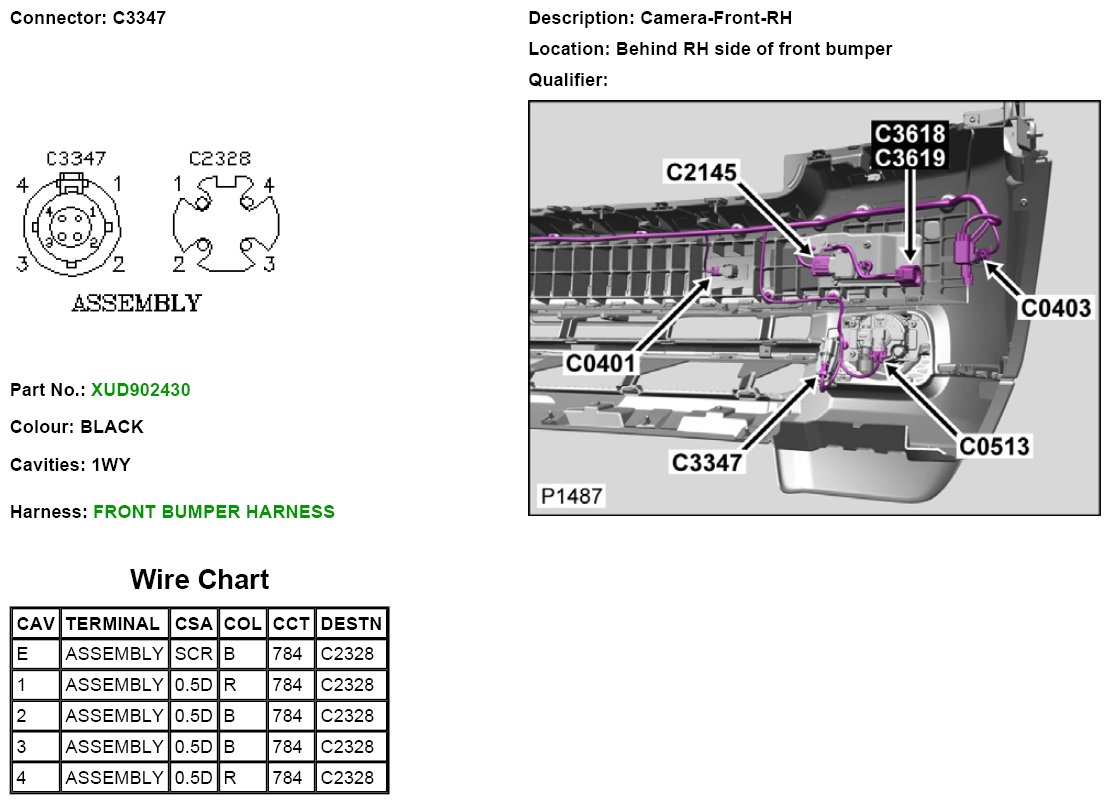

C3347
C3347
C3347
C3347:
