Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3308-C3394
>>
C3343
C3343
C3343

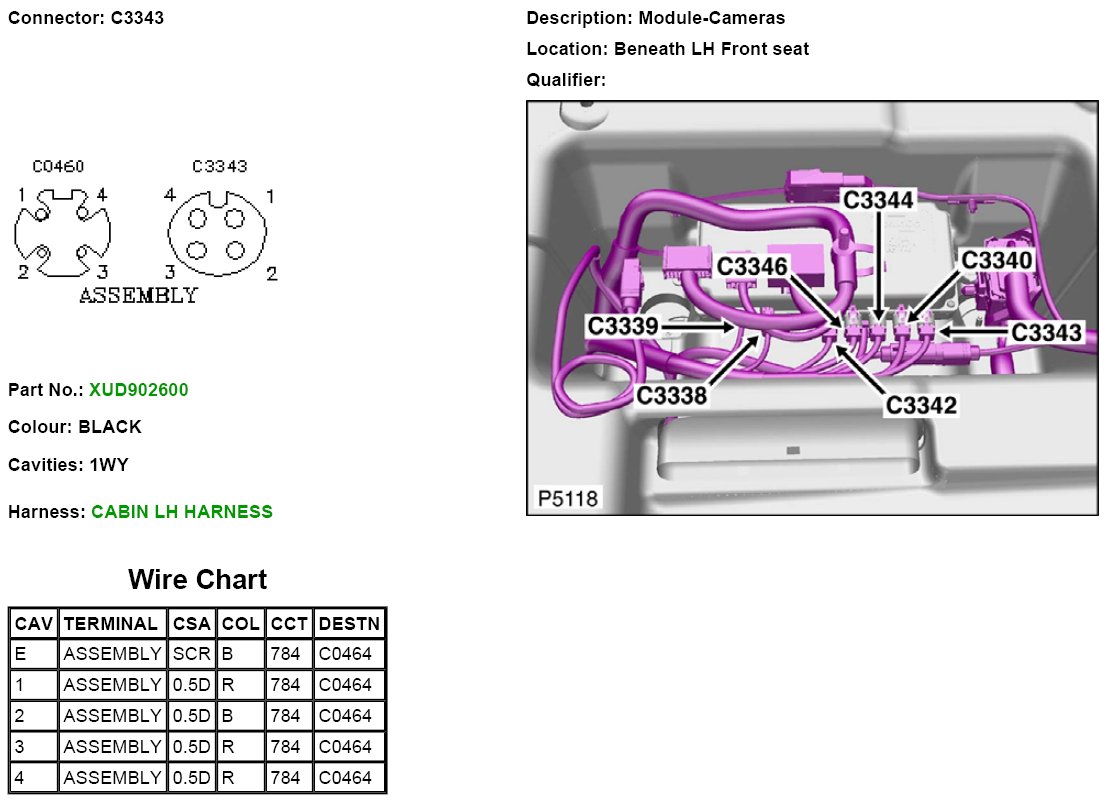

C3343:
