System Specifications

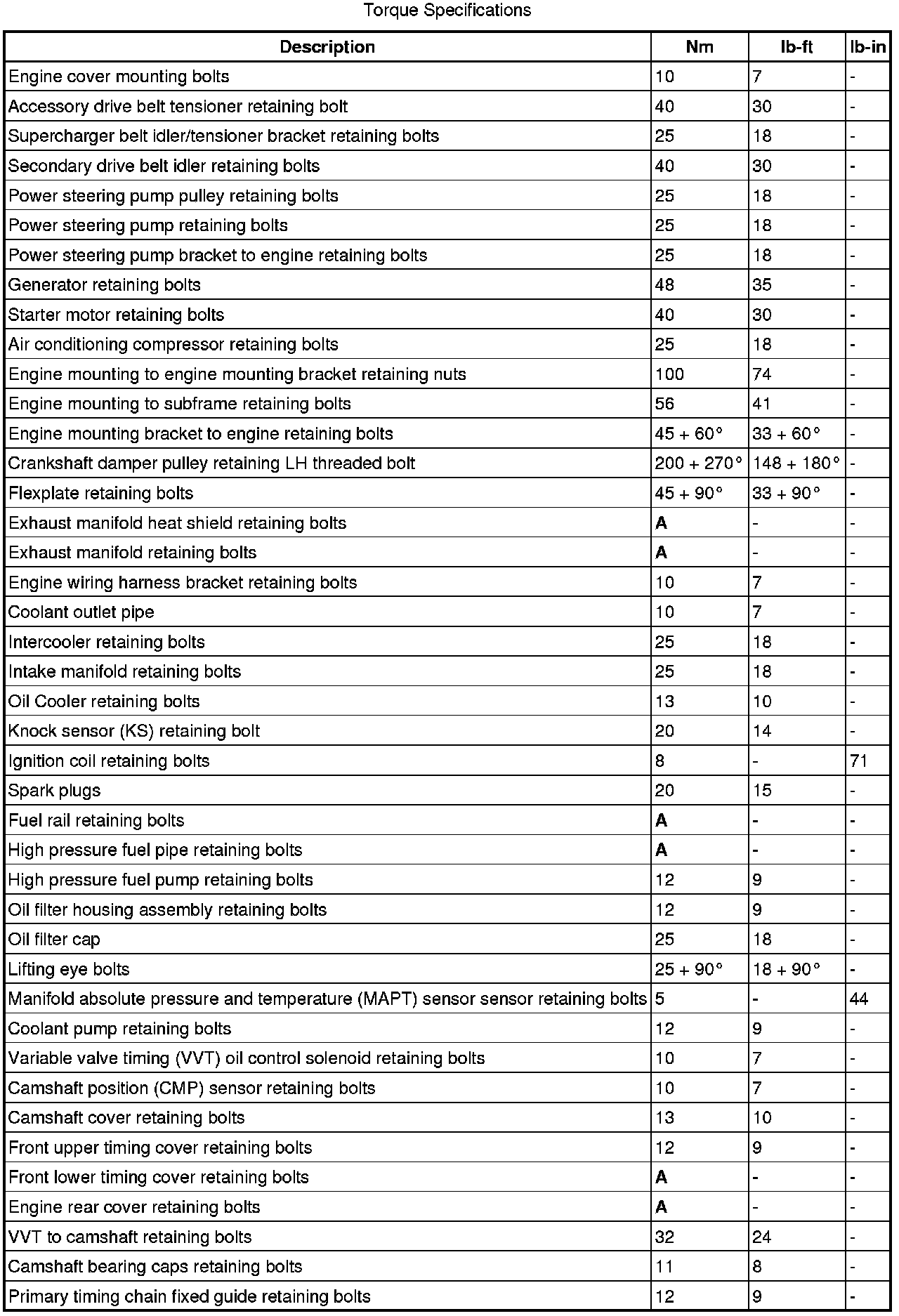

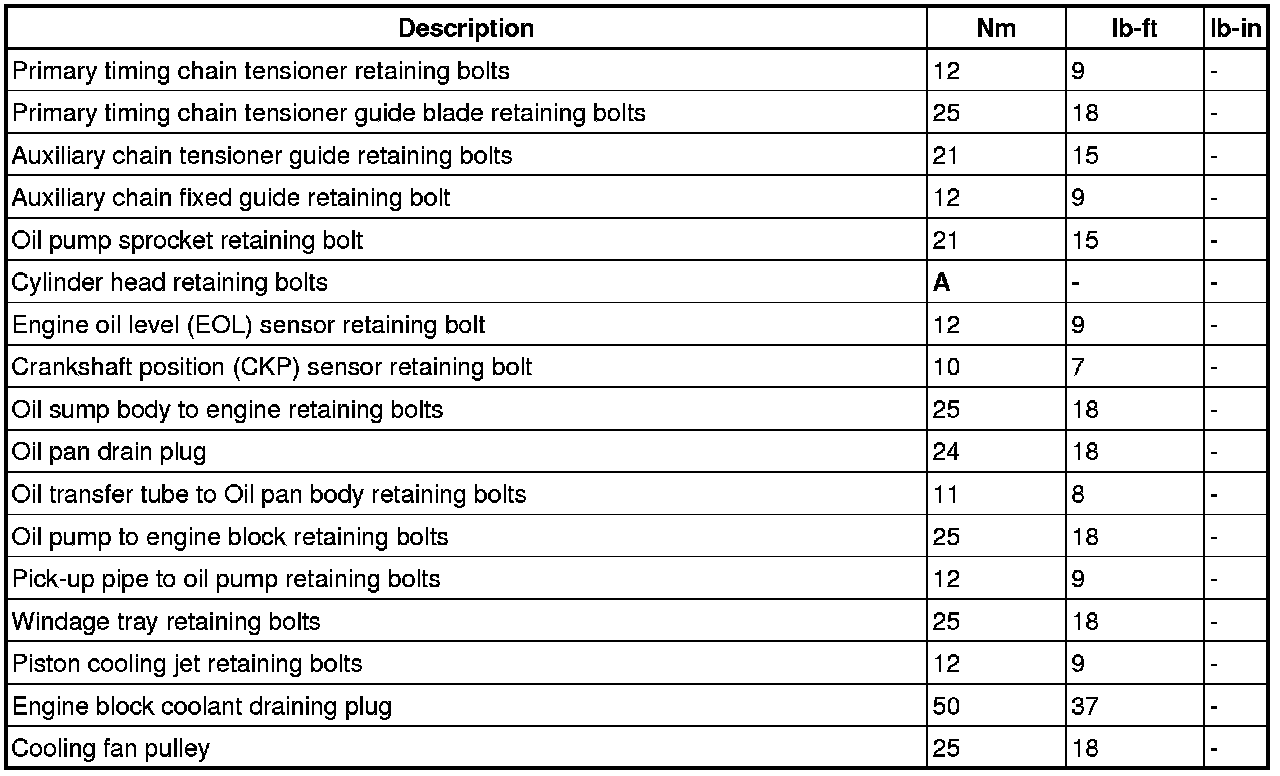

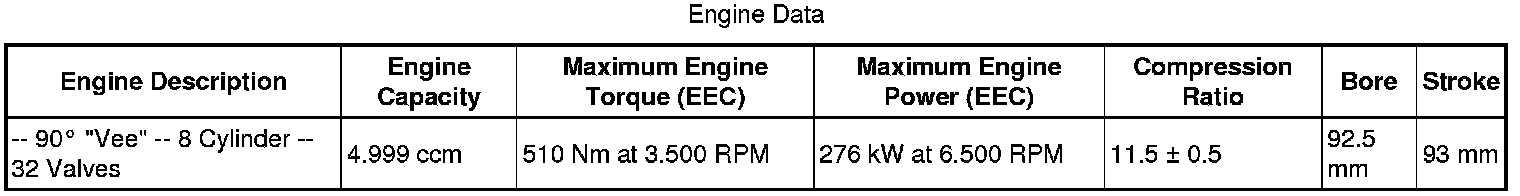

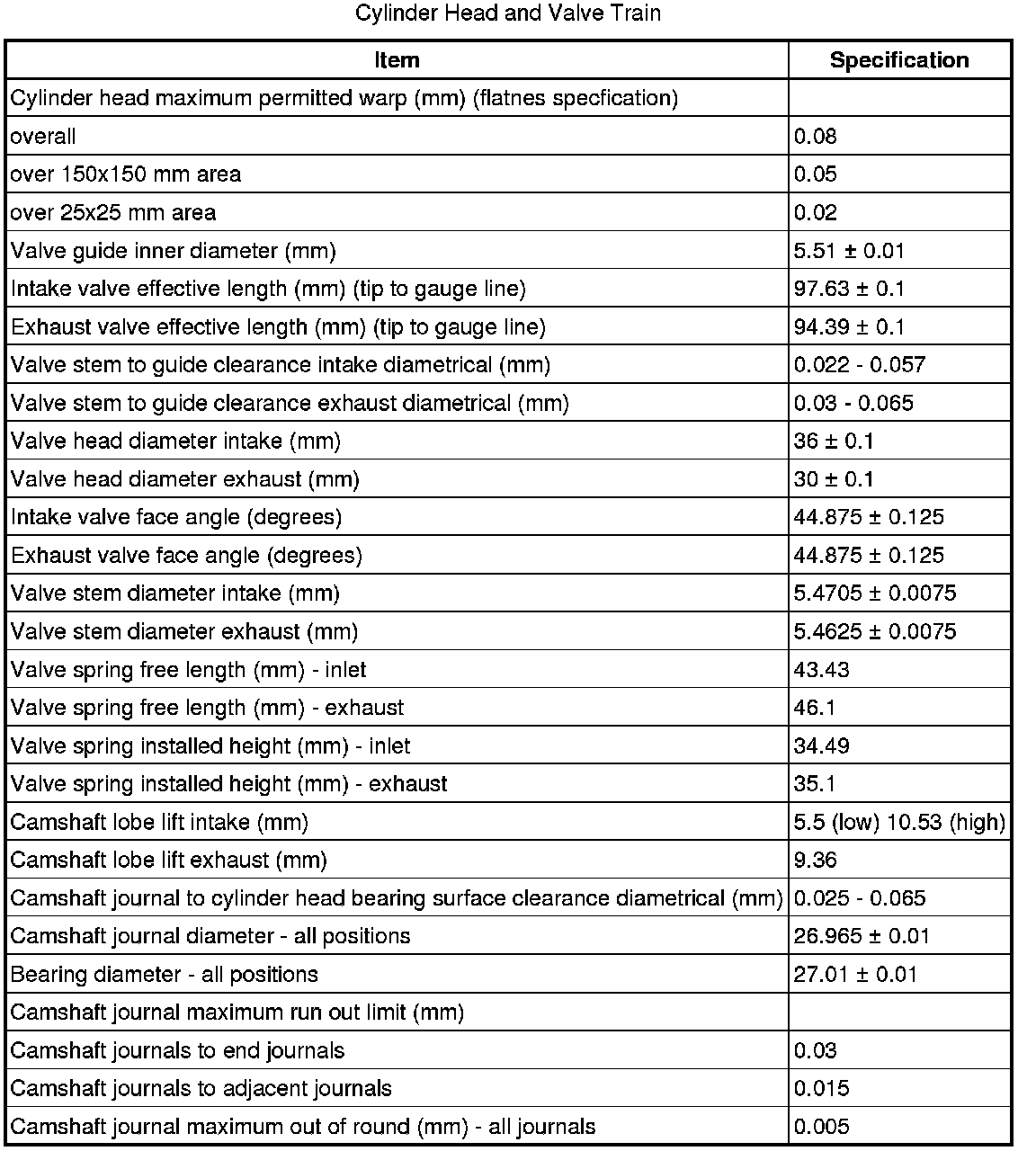

Specifications






















NOTE:
A = Refer to procedure for correct torque sequence.
