Home
>>
Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3303 - C3646
>>

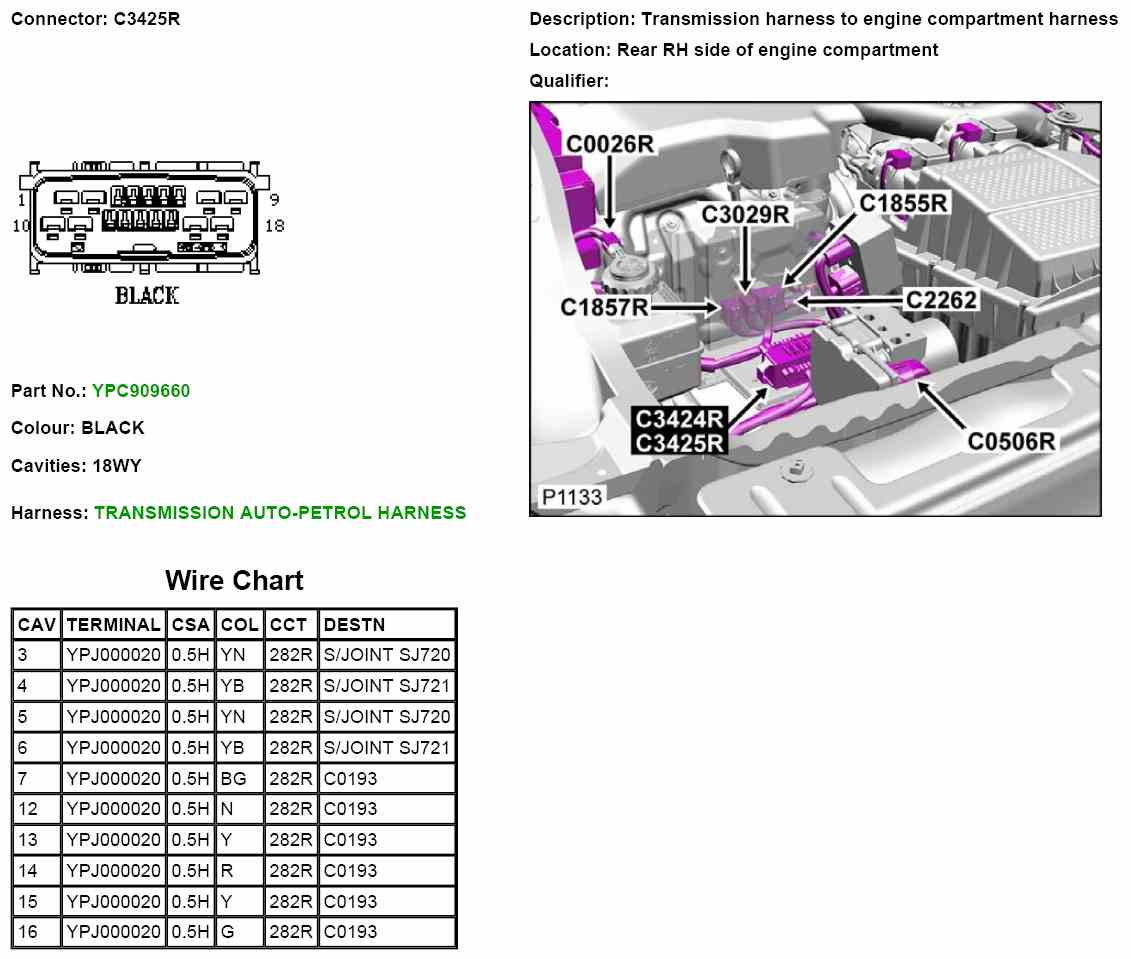

C3425R
C3425R
C3425R
C3425R:
