Home
>>
Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2409R - C2696
>>

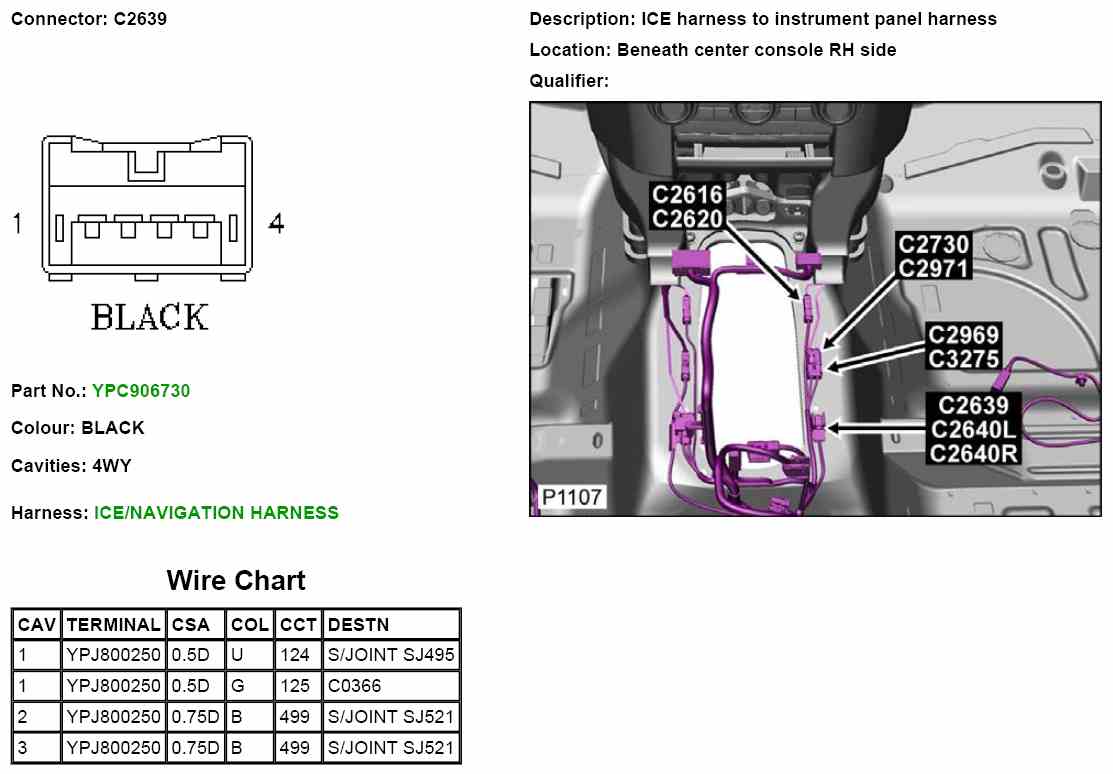

C2639
C2639
C2639
C2639:
