Home
>>
Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2201S - C2382
>>

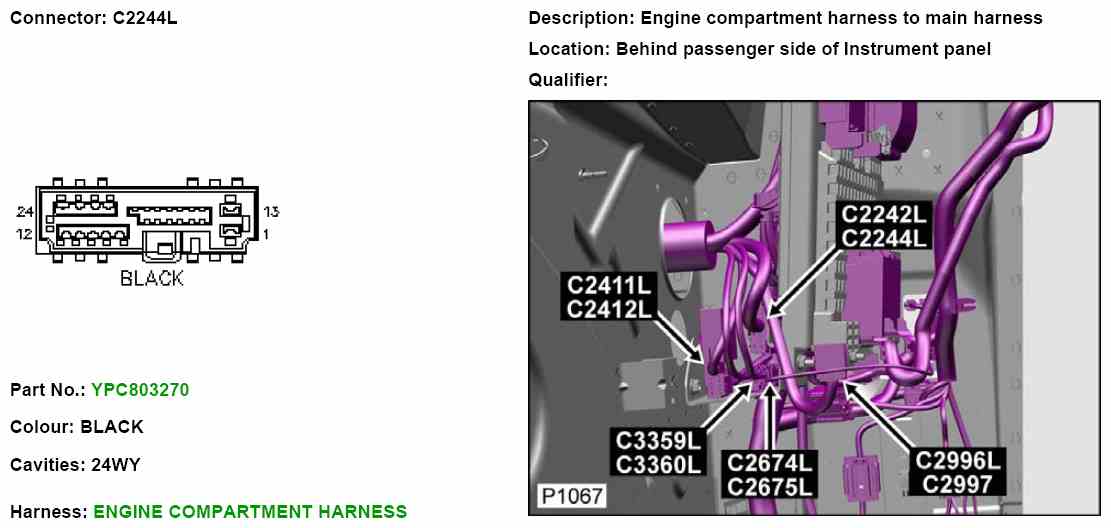

C2244L
C2244L
C2244L

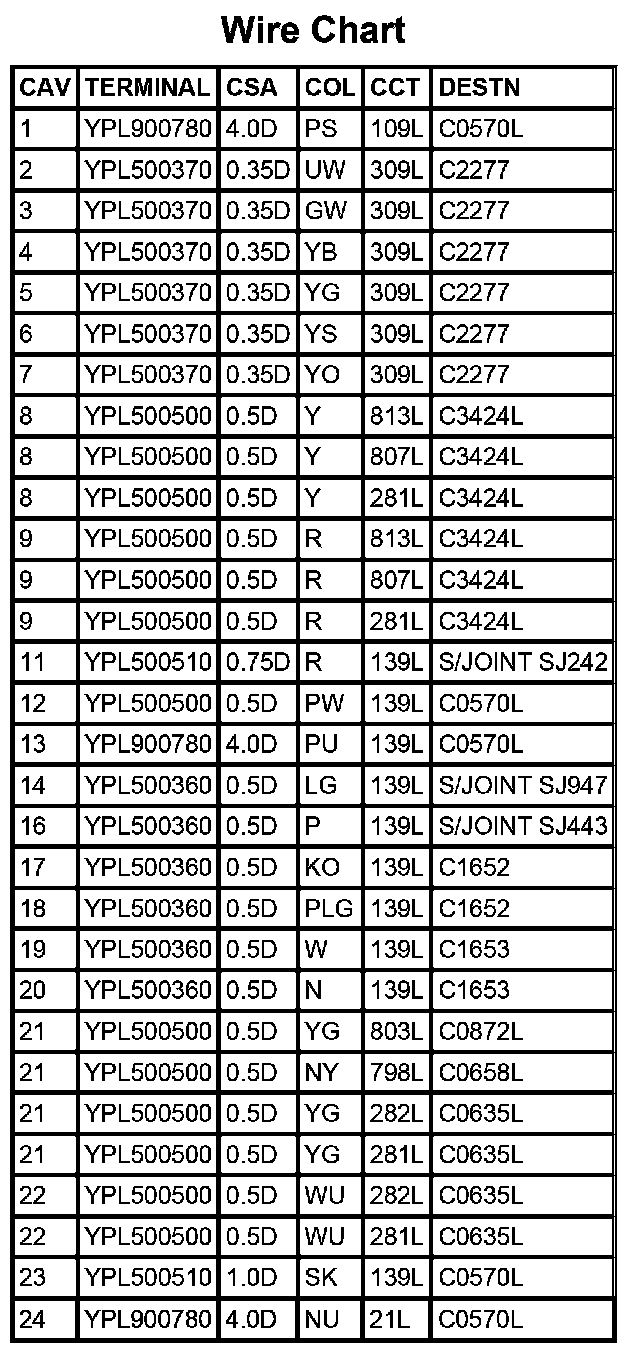

C2244L (Part 1):
C2244L (Part 2):
