Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1527M - C1975
>>

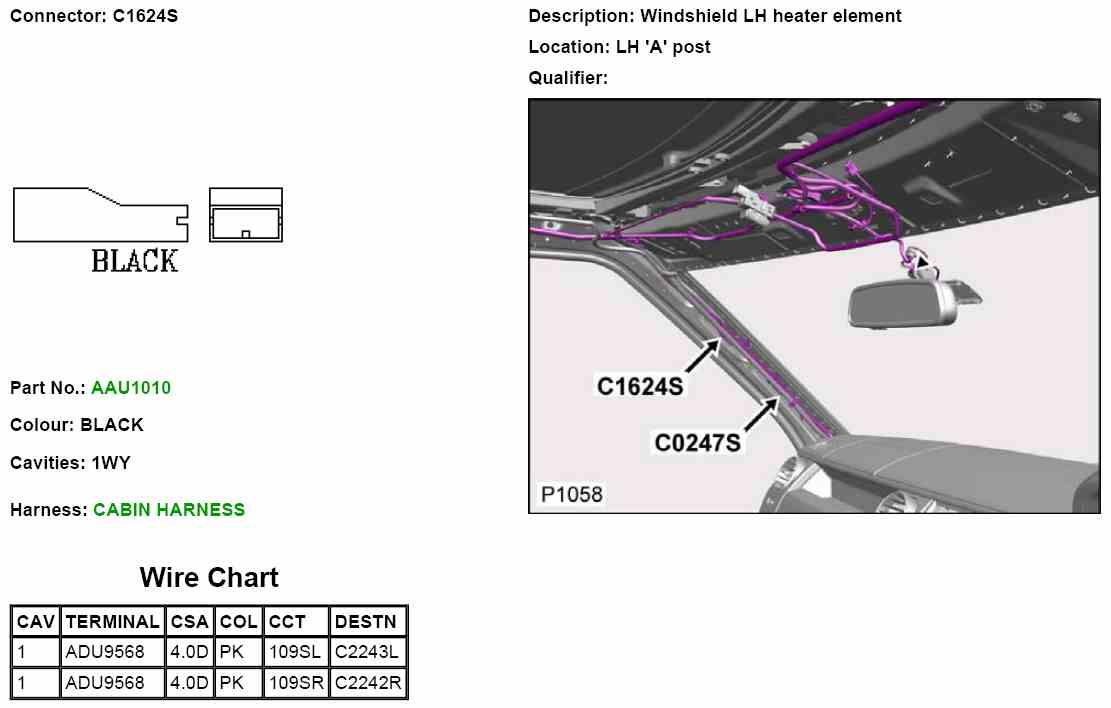

C1624S
C1624S
C1624S
C1624S:
