Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0304 - C0399
>>

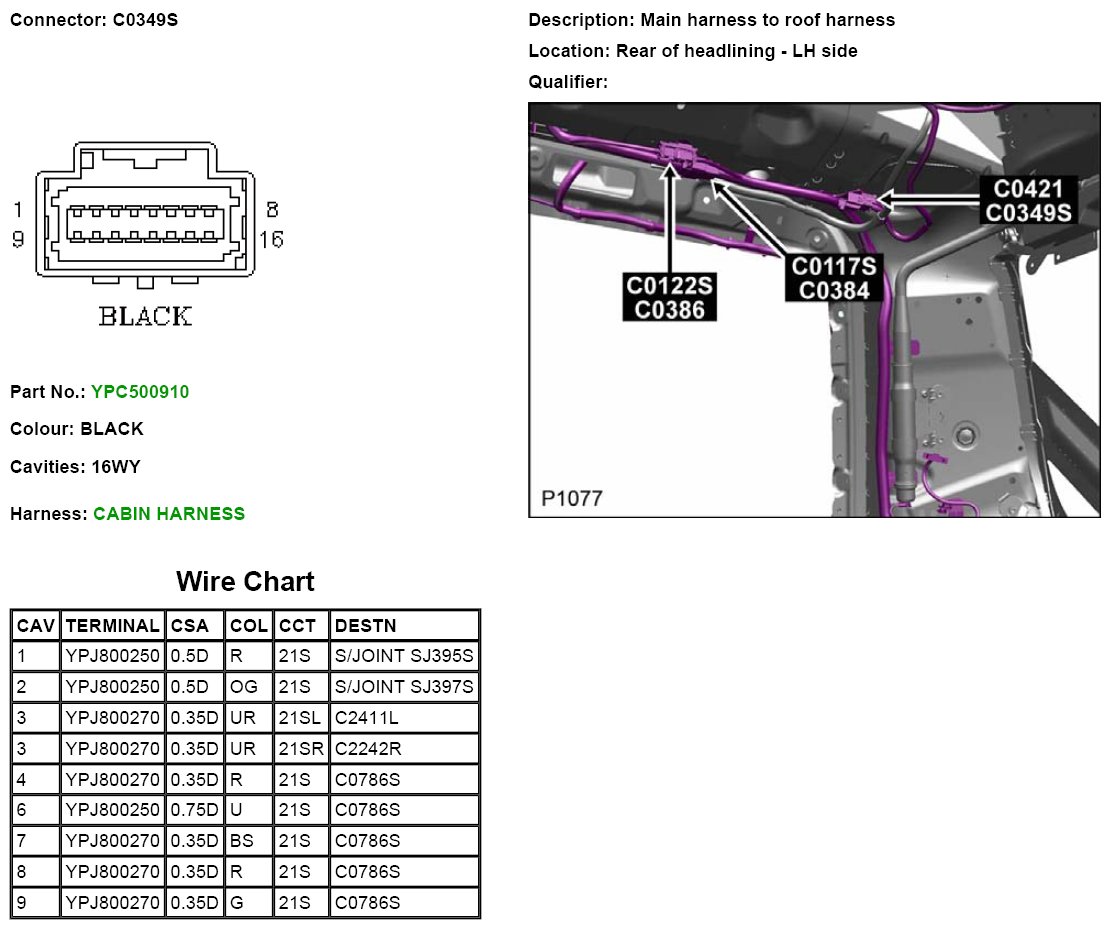

C0349S
C0349S
C0349S
C0349S:
