Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0004 - C0097
>>

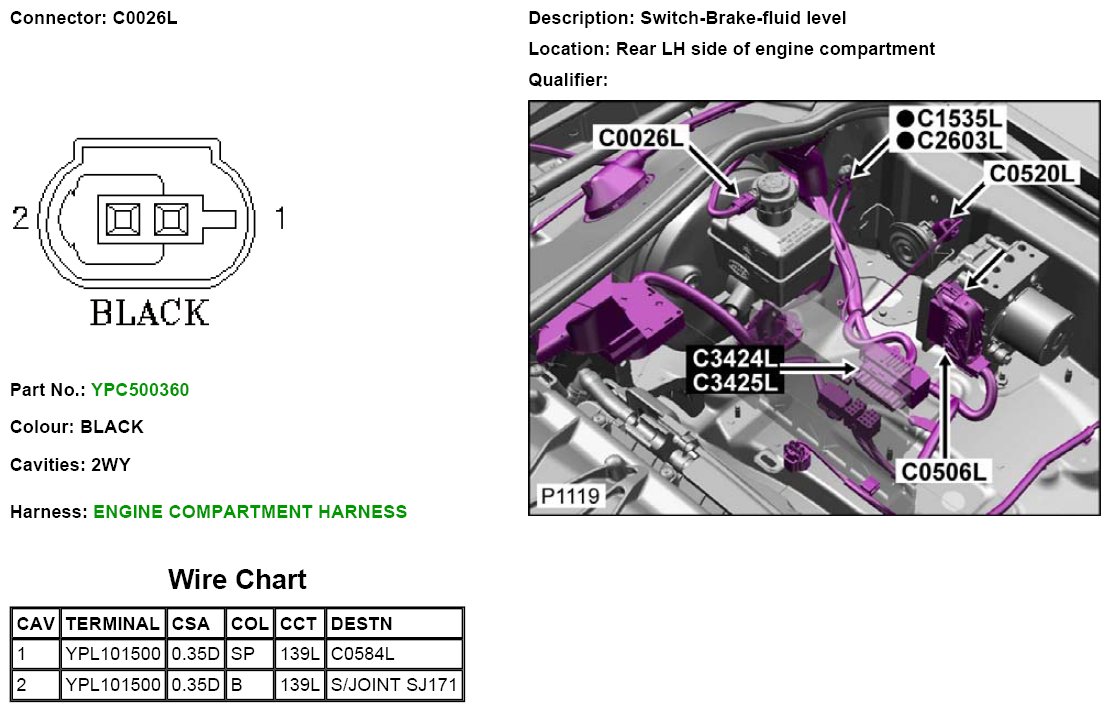

C0026L
C0026L
C0026L
C0026L:
