Rear Suspension

Rear Stabilizer Bar Bushing
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.

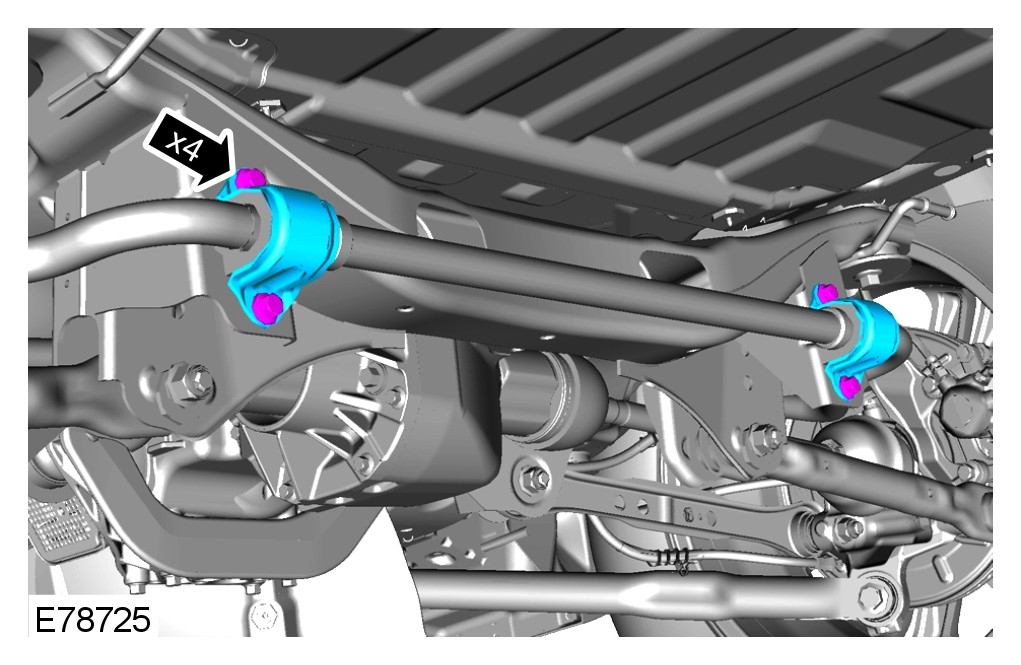

CAUTION: Discard the bolts.

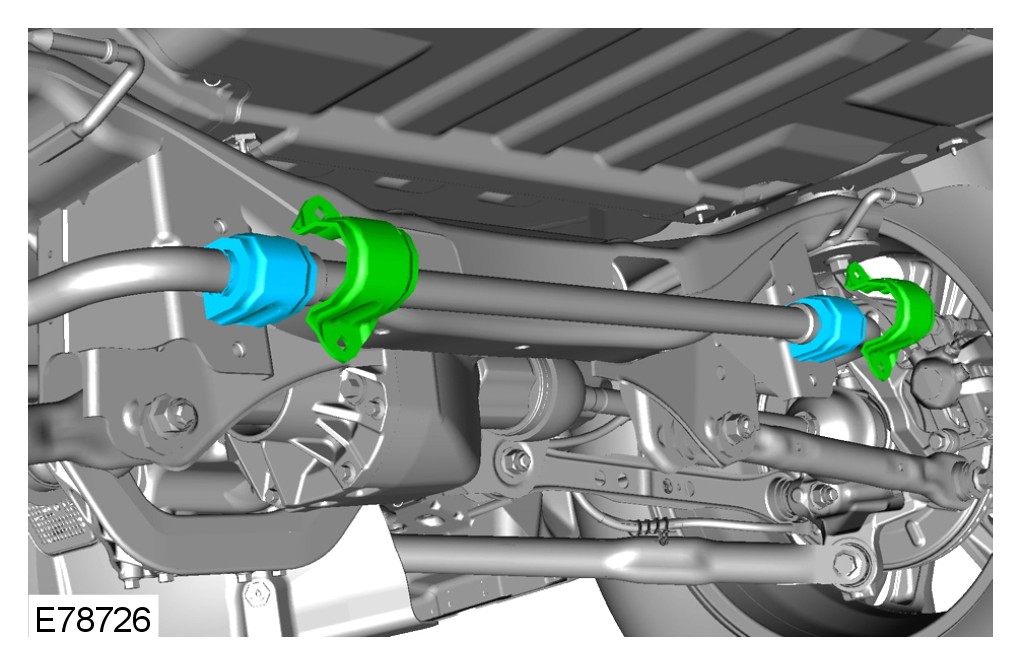

NOTE:
Muffler has been removed for clarity.





Installation

CAUTION: Make sure that the component is clean, free of foreign material and lubricant.
1 Install the stabilizer bar bushings.

CAUTION: Make sure that the component is clean, free of foreign material and lubricant.
2 Install the stabilizer bar clamps.

CAUTION: Make sure that new bolts are installed.
3 Install the bolts, but do not tighten fully at this stage.

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.
4 Tighten the stabilizer bar clamp bolts.
Torque to: 60 Nm
