Home >> Land Rover >> 2011 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Seat Occupant Classification Module - Air Bag >> Locations

Seat Occupant Classification Module - Air Bag: Locations

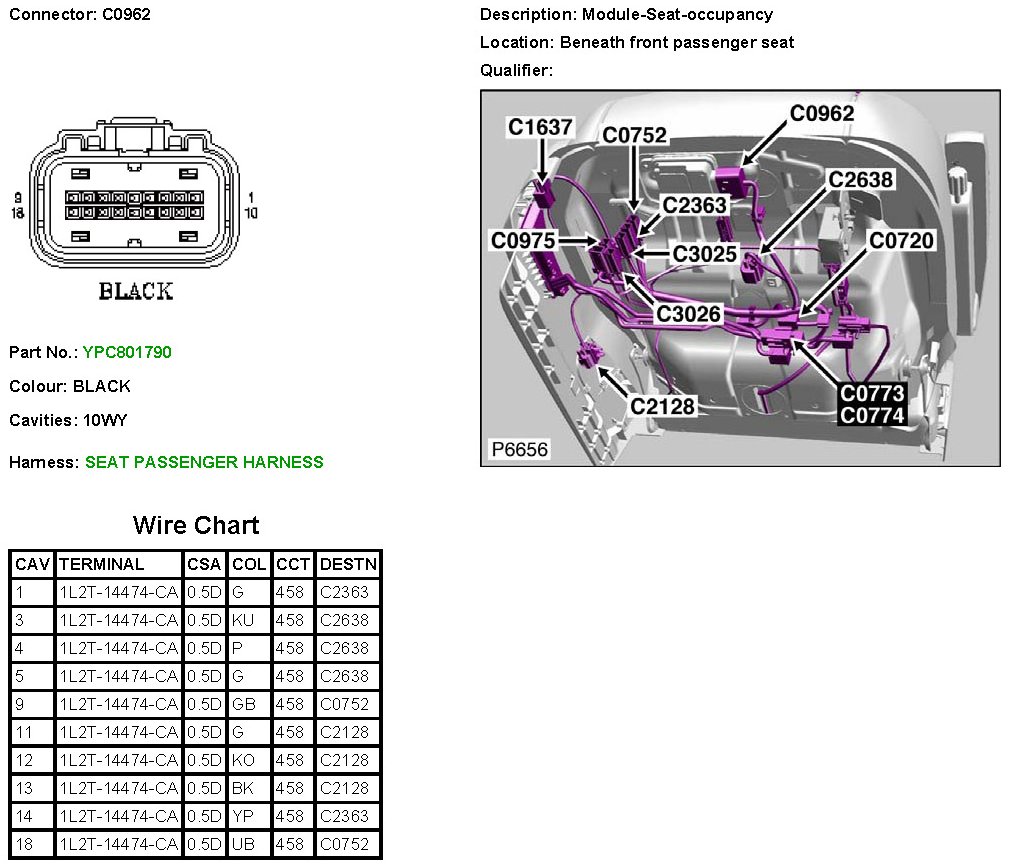

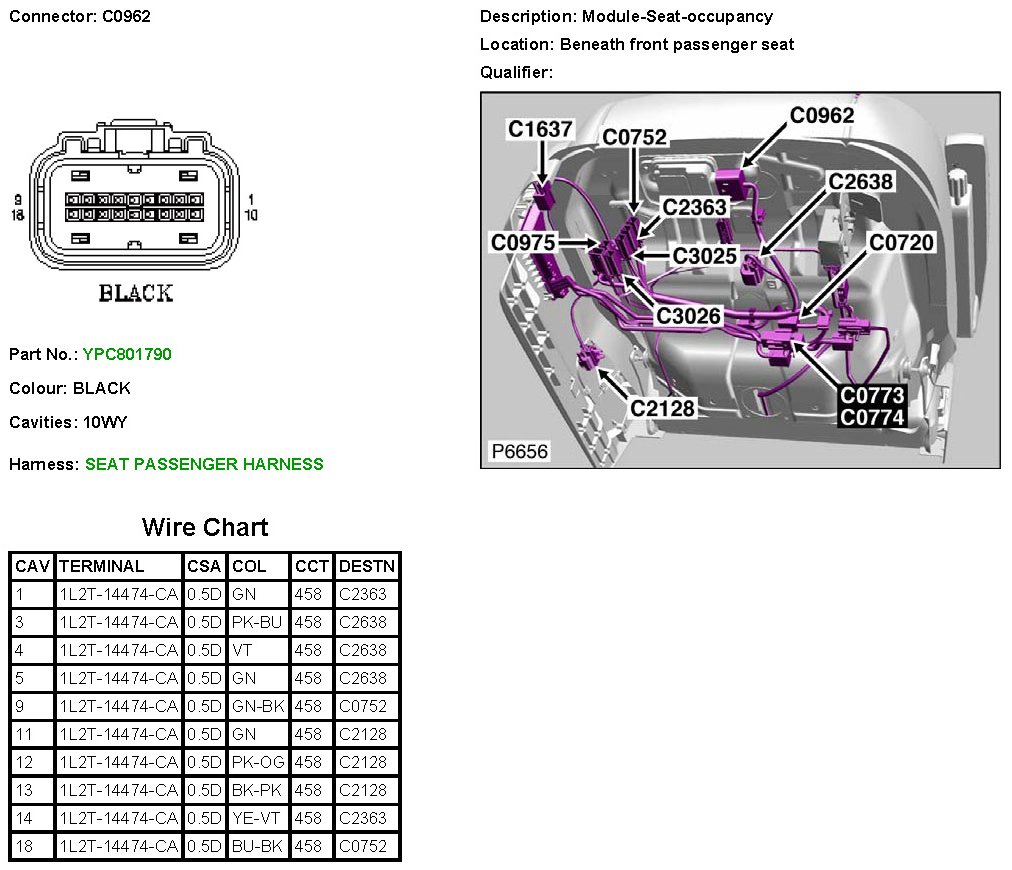

C0962


C0962:




C0962:




C0962:
