Home
>>
Land Rover
>>
2011
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1LF08A - C1RW14E
>>

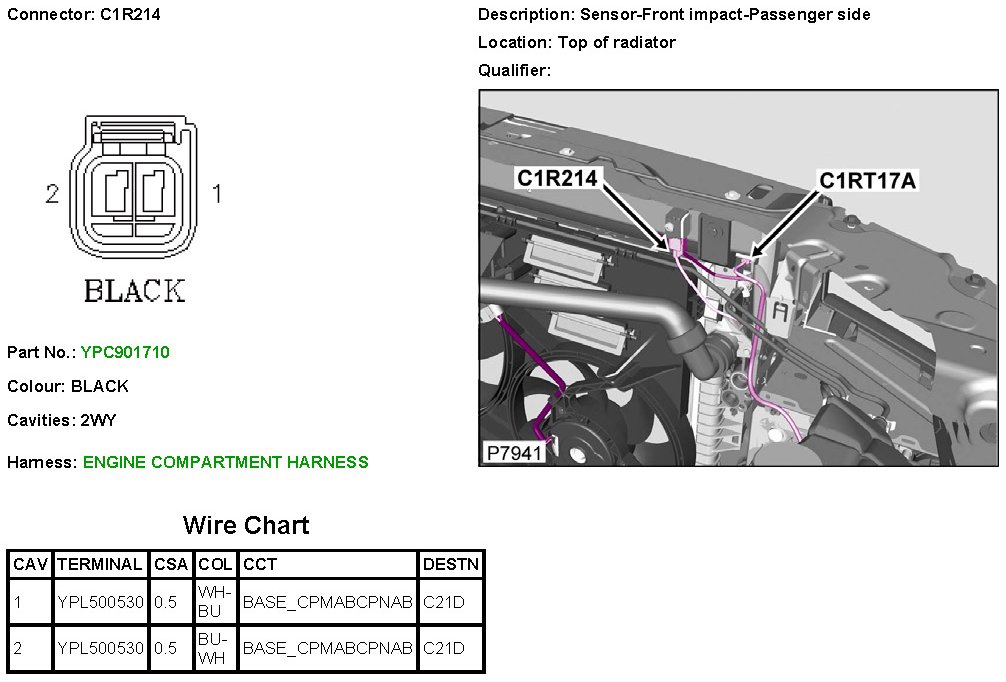

C1R214
C1R214
C1R214
C1R214:
