Removal and Replacement

Parking Brake Shoes
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
If the parking brake shoes or the brake discs have been removed for access to other components then DO NOT carry out the bedding in procedure.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
1 Raise and support the vehicle.
2 Remove the wheels and tires.
For additional information, refer to Wheel and Tire Service and Repair
3 Remove both rear brake discs.
For additional information, refer to Brake Disc Rear Brake Disc

















4 Repeat the above procedure for the other side.

Installation

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
1 Clean the backing plate and apply grease to the brake shoe contacts.
2 Clean the adjuster and set it to its minimum extension.

CAUTION: Make sure the brake shoe spring is not over stretched.

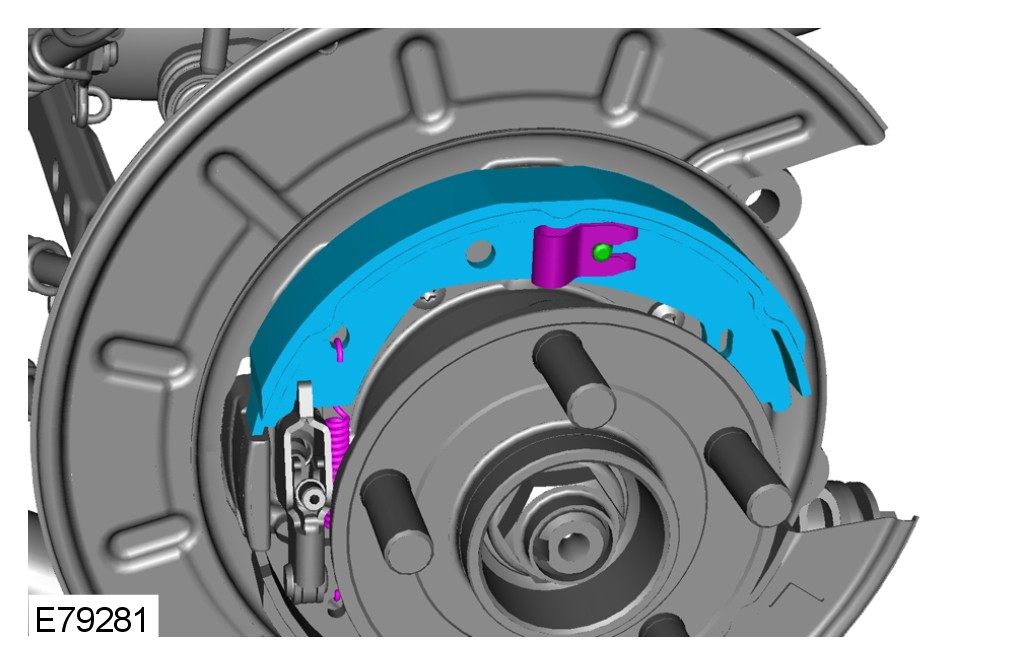

Install the secondary brake shoe.
Connect the parking brake cable.
Connect the parking brake cable retaining spring to the brake shoe lever, making sure the spring is not twisted.
Install the hold-down spring and retaining pin.

WARNING: Make sure the return spring and the adjuster spring are correctly installed to the primary shoe.

CAUTION: Make sure the brake shoe spring is not over stretched.

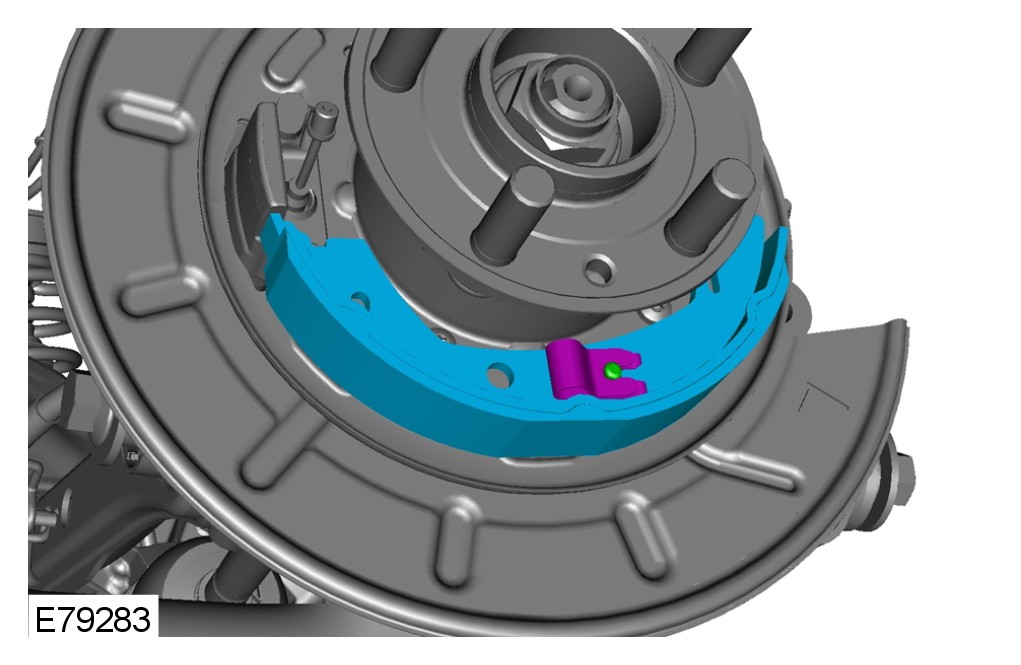

Install the primary brake shoe.

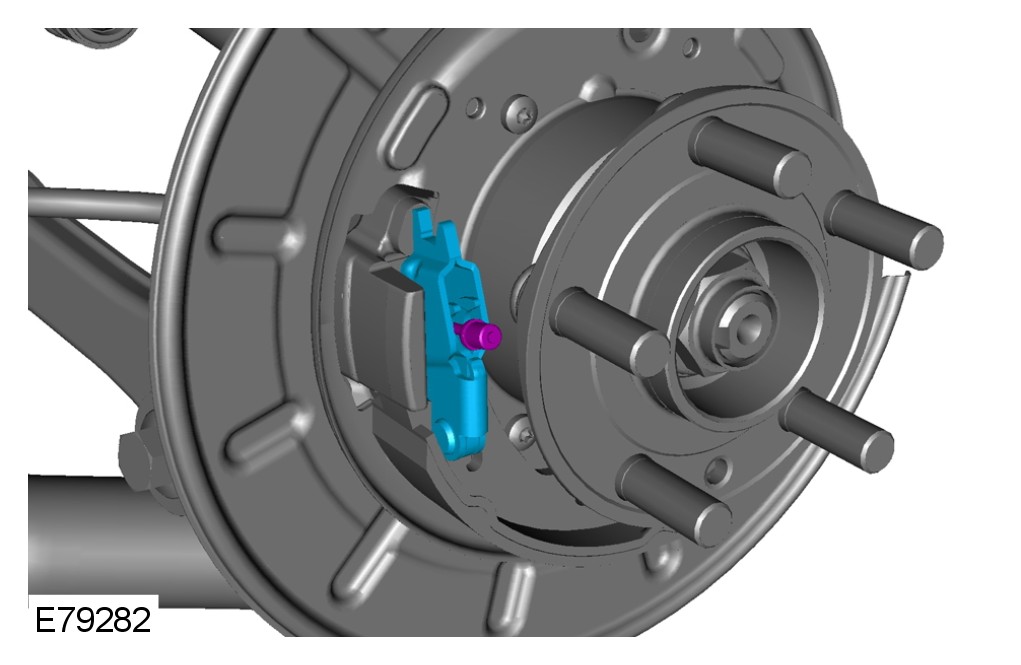

Install the spreader plate and the spring.
Install the return spring.
Install the hold-down spring and retaining pin.

CAUTION: Make sure the brake shoe spring is not over stretched.

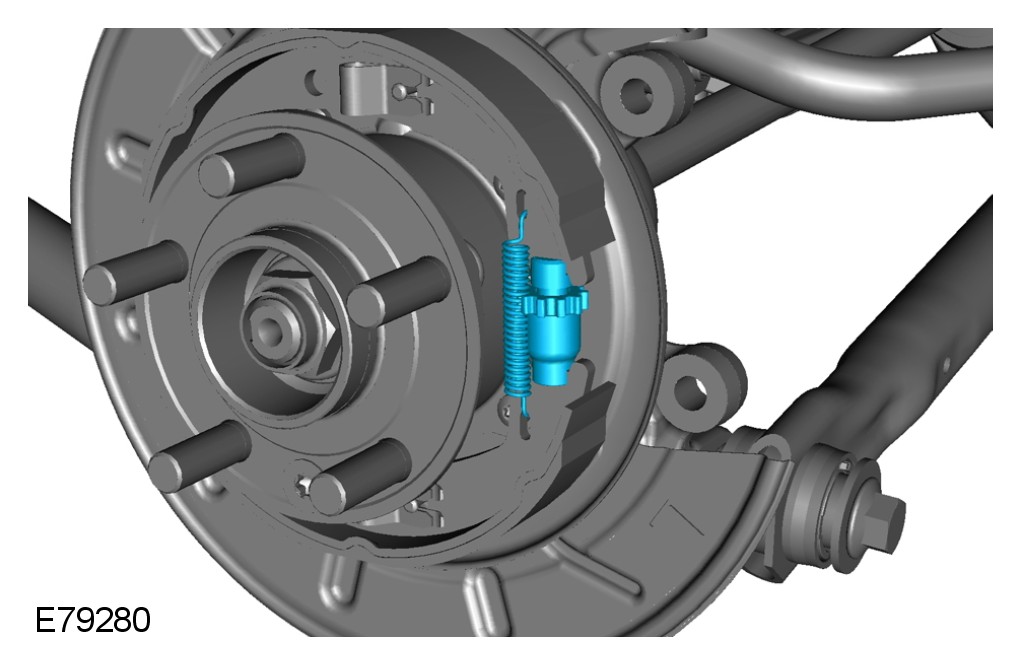

3 Install the brake shoe adjuster.
4 Repeat the above procedure for the other side.
5 Install both rear brake discs.
For additional information, refer to Brake Disc Rear Brake Disc
6 Install the wheels and tires.
For additional information, refer to Wheel and Tire Service and Repair
7 If necessary, carry out the parking brake shoe bedding-in procedure.
For additional information, refer to Parking Brake Shoes Bedding-In Procedures
