Brake Pedal and Bracket

Brake Pedal and Bracket
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Make the SRS system safe.
For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering
2 Remove the driver lower air bag module.
For additional information, refer to Driver Lower Air Bag Module Driver Lower Air Bag Module
3 Remove the throttle pedal assembly.
For additional information, refer to Speed Control Actuator Service and Repair








4 Remove the brake pedal assembly.
Torque to: 25 Nm





NOTE:
Do not disassemble further if the component is removed for access only.

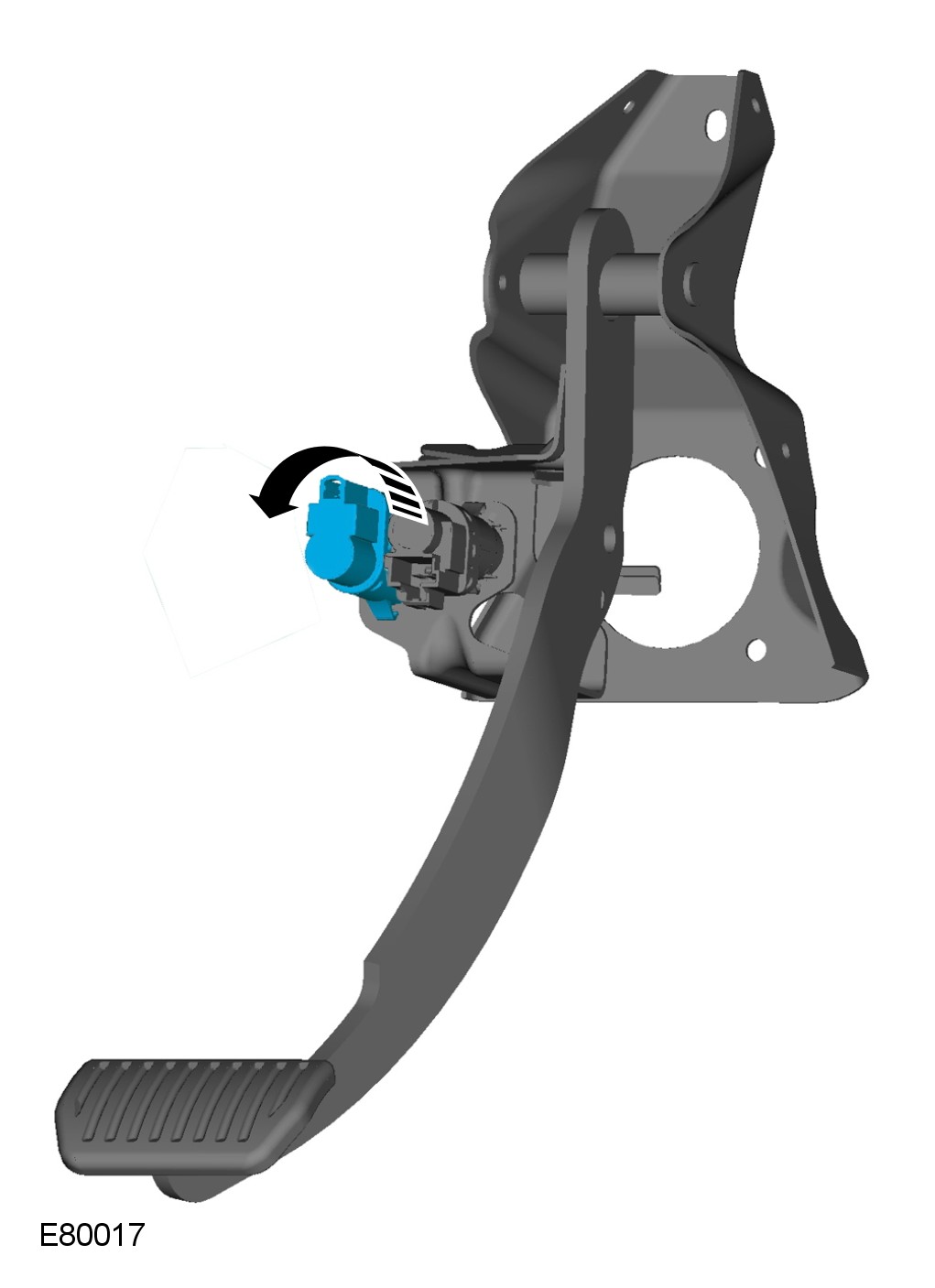

5 Remove the stoplamp switch.




6 Remove the speed control deactivation switch.

Installation
1 To install, reverse the removal procedure.
