Removal and Replacement

Roof Opening Panel Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
It is possible to gain access to the roof opening panel motor by partially releasing the headliner, the motor is situated above the rear interior lamp.
1 Remove the interior mirror.
For additional information, refer to Interior Rear View Mirror Interior Rear View Mirror
2 Remove both A-pillar trim panels.
For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel
3 Remove both B-pillar upper trim panels.
For additional information, refer to B-Pillar Upper Trim Panel B-Pillar Upper Trim Panel




4 Carefully release both C-pillar upper trim panels.




5 Remove the passenger assist
handles.




6 Remove both sun visors.

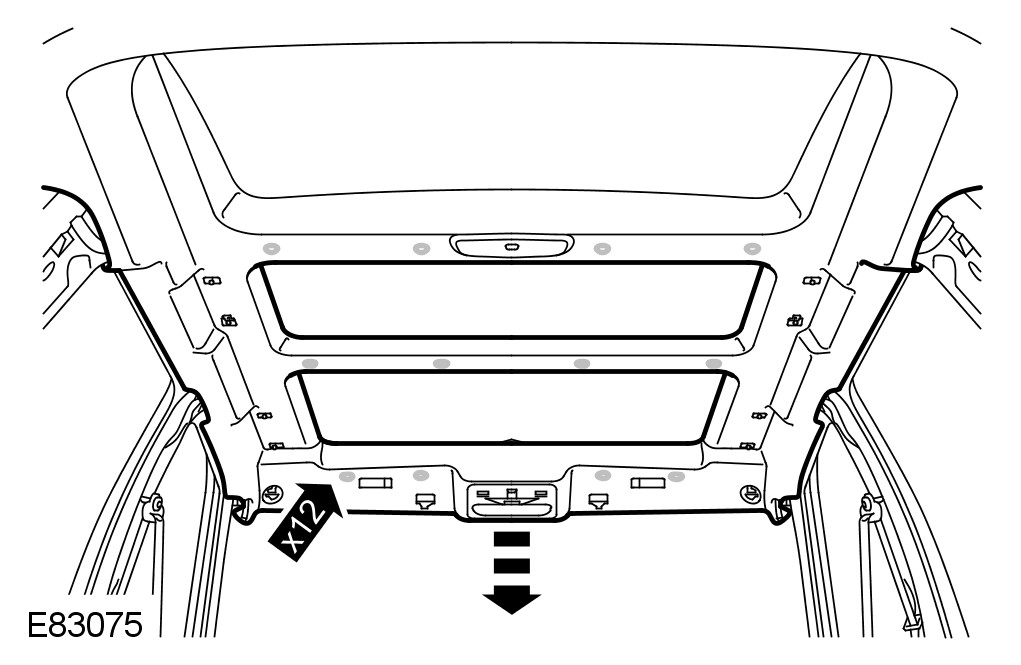

7 With assistance starting from the front edge, carefully release the headliner for access. Support the headliner after release to prevent damage.




8 Remove the roof opening panel motor.

Installation
1 Install the roof opening panel motor.
Torque to: 2.5 Nm
2 Secure the roof opening panel motor tether.
Torque to: 4 Nm
3 Connect the roof opening panel motor electrical
connector.
4 With assistance, carefully install the headliner.
5 Install the sun visors.
6 Install the passenger assist handles.
7 Install both C-pillar upper trim panels.
8 Install both B-pillar upper trim panels.
For additional information, refer to B-Pillar Upper Trim Panel B-Pillar Upper Trim Panel
9 Install both A-pillar upper trim panels.
For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel

10 Install the interior mirror.
For additional information, refer to Interior Rear View Mirror Interior Rear View Mirror

11 Manually initialize the roof opening panel motor.
Switch the ignition on.
Press the front leading edge of the roof opening panel switch and move the roof opening panel glass to the full tilt position.
Release the switch.
Press and hold the front leading edge of the switch.
After 20 seconds the roof opening panel glass will perform the following: stall in the tilt mode causing a
noise, a full open and close cycle.
Do not release the switch until the roof opening panel glass has completed the above step.
Release the switch.
The roof panel will now operate one-touch open (tilt and fully open) and one-touch close (from the fully open position).
One touch close is inoperable from tilt.
