Home
>>
Land Rover
>>
2010
>>
Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Drive Axles, Bearings and Joints
>>
Axle Shaft Assembly
Axle Shaft Assembly

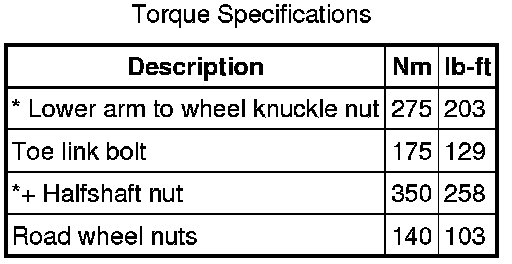

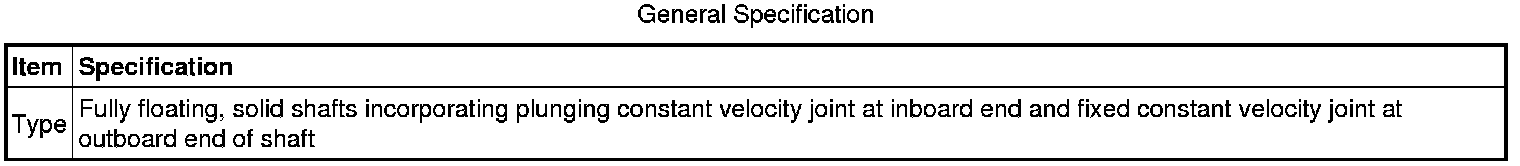

Specifications
* New nut must be fitted
+ Stake nut on completion
