Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1527M - C1975
>>

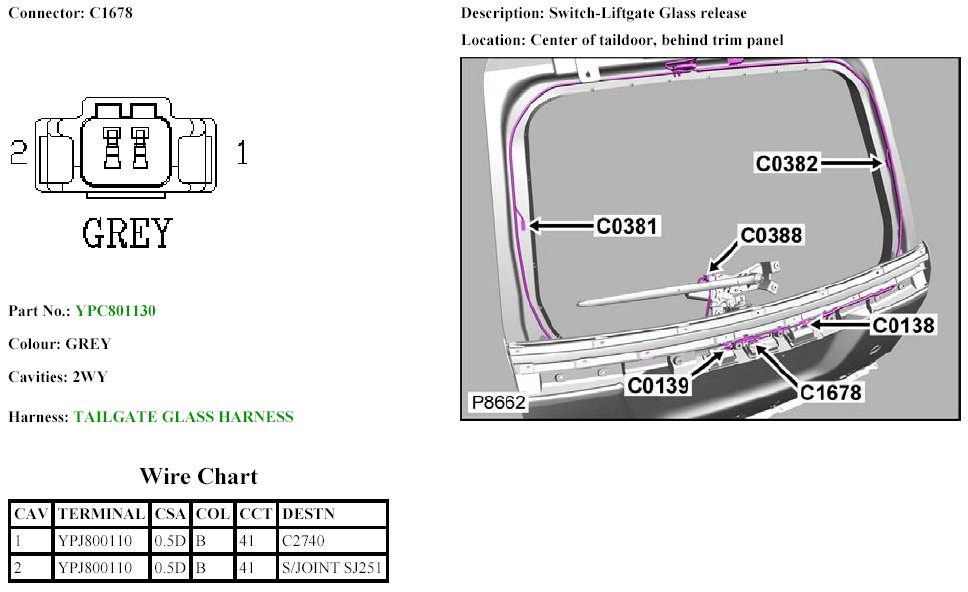

C1678
C1678
C1678
C1678:
