Part 2
Instrument Cluster
Anti-lock Brake System Warning Indicator
The Anti-lock Brake System (ABS) warning indicator is controlled by the ABS module which transmits a high speed CAN bus message to the CJB. The CJB relays the message to the instrument cluster over the medium speed CAN bus. The warning indicator is illuminated in an amber color for 3 seconds for a bulb check by the ABS module when the vehicle enters power mode 6. If the warning indicator remains illuminated or illuminates when driving, an ABS fault has occurred and the ABS function will not be available.
During the bulb check, if the warning indicator comes on for 0.5 second, then goes off for 0.5 second and is then illuminated for the remaining 2 seconds of the bulb check, this indicates that faults are stored in the ABS module memory.
If the warning indicator was illuminated due to a wheel speed sensor fault, the indicator will remain illuminated at the next ignition cycle, even if the fault is rectified. When the vehicle is driven above a speed of 20 km/h (12.5 mph) the indicator will be extinguished. This allows the ABS module to perform a thorough check of the system and to establish that the output from the replaced sensor is correct.
Low Fuel Level Indicator
The low fuel level indicator is controlled by the fuel level gage software (see above). When the vehicle enters power mode 6, the low fuel indicator is illuminated in an amber color for a 3 second bulb check. If the fuel level gage software determines the low fuel indicator should be illuminated, it flashes the indicator at a rate of 2 Hz for 5 seconds. The first flash is accompanied by a chime from the instrument cluster sounder. After the 5 second flashing period the indicator will remain illuminated until fuel is added to the tank or the vehicle ignition is switched off.
Parking Brake Indicator
The red parking brake indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The signal originates in the parking brake microswitch, which is hardwired to the CJB. The parking brake indicator will only illuminate if the parking brake is applied and the vehicle is in power mode 6.
Rear Fog Lamp Indicator
The rear fog lamp indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The indicator is illuminated in an amber color if the vehicle is in power mode 6 and rear fog lamp operation has been requested.
Front Fog Lamp Indicator
The front fog lamp indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The indicator is illuminated in a green color if the vehicle is in power mode 6 and front fog lamp operation has been requested.
Adaptive Front Lighting System Indicator
The Adaptive Front lighting System (AFS) indicator is controlled by the AFS module. The AFS module is hardwired to the CJB, which relays signals to the instrument cluster over the medium speed CAN bus. When the vehicle enters power mode 6, the AFS indicator is illuminated in an amber color for a 3 second bulb check. If during AFS operation a fault is detected, the AFS indicator will flash at a frequency of 2 Hz.
Speed Control Indicator
The speed control indicator is controlled by the ECM, which transmits a speed control active signal to the instrument cluster via the CJB. The indicator will illuminate in an amber color when the vehicle is in power mode 6 and speed control is active.
Trailer Indicator
The trailer indicator is controlled by the instrument cluster on receipt of medium speed CAN bus signals from the CJB. When a trailer is connected to the vehicle electrical system and the turn signal indicator switch is operated, the CJB transmits a signal to the instrument cluster to operate the trailer indicator. The instrument cluster software controls the flash rate of the indicator which flashes in a green color. The trailer indicator flashes slowly, at the same rate as the turn signal indicators.
Low Washer Fluid Indicator
The low washer fluid indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The signal originates in the low washer fluid level switch, which is hardwired to the CJB.
The amber low washer fluid indicator is subject to a 3 second bulb check when the vehicle enters power mode 6. If a low washer fluid level is detected for more than 15 seconds when the vehicle is in power mode 6, the instrument cluster will illuminate the indicator.
Low Engine Coolant Level Warning Indicator
The low engine coolant level warning indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB when the vehicle is in power mode 6. The signal originates in the ECM, which transmits the signal to the CJB over the high speed CAN bus.
When the vehicle enters power mode 6, the amber low engine coolant level warning indicator is illuminated for a 3 second bulb check. If the warning indicator remains illuminated after this period, the engine cooling system should be checked for leaks and topped up as necessary.
Transmission Warning Indicator
The transmission warning indicator displays automatic transmission and active-on demand coupling warnings. The warning indicator is illuminated on receipt of medium speed CAN bus signals from the CJB. The signals originate in the Transmission Control Module (TCM) and the active-on demand coupling control module respectively and are transmitted to the CJB over the high speed CAN bus.
The transmission warning indicator is a dual color indicator, which is subject to a 3 second bulb check when the vehicle enters power mode 6. For the first 1.5 seconds of the bulb check the indicator illuminates in an amber color, followed by 1.5 seconds illuminated in a red color.

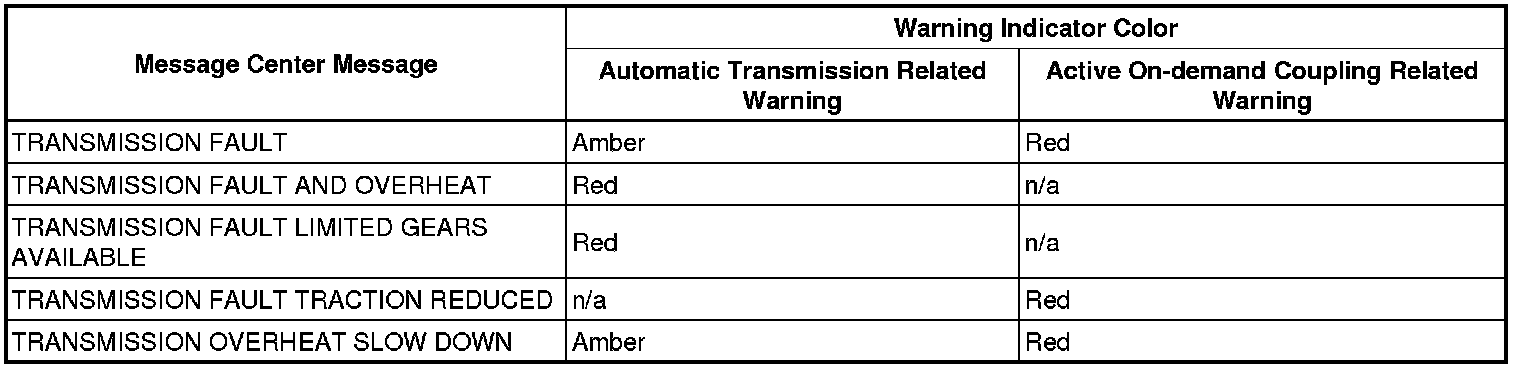

The table below details warning indicator color against message center message.
Hill Descent Control Fault Warning Indicator
The amber Hill Descent Control (HDC) warning indicator is illuminated on receipt of medium speed CAN bus signals from the CJB. The signals originate in the ABS module and are transmitted to the CJB over the high speed CAN bus.
When the vehicle enters power mode 6, the HDC warning indicator is subject to a 3 second bulb check. If during HDC operation the HDC warning indicator illuminates it signifies that the 'fade out' strategy has been invoked due to component failure.
If the HDC warning indicator flashes it signifies that the 'fade out' strategy has been invoked due to brake system overheat. In this instance, the first flash is accompanied by a chime from the instrument cluster and the green HDC active indicator will be extinguished. For additional information, refer to Anti-Lock Control - Stability Assist Anti-Lock Control - Stability Assist
Door Open Indicator
The door open indicator is illuminated on receipt of medium speed CAN bus signals from the CJB. The signals originate in the door modules, which are hardwired to the CJB. The door open indicator will illuminate in a red color if a door open signal is received by the CJB from any door module while the vehicle is in power mode 6.
Engine Management System Warning Indicator
The engine management system warning indicator is illuminated on receipt of medium speed CAN bus signals from the CJB. The signals originate in the ECM and are transmitted to the CJB over the high speed CAN bus.
The amber engine management system warning indicator is illuminated for a 3 second bulb check when the vehicle enters power mode 6. If the indicator subsequently illuminates a DTC will be logged in the ECM which should be interrogated using the Land Rover approved diagnostic system.
Side Lamp Indicator
The green side light indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The signal originates in the light switch module and is transmitted to the CJB over the Local Interconnect Network (LIN) bus. The instrument cluster will only illuminate the side lamp indicator when the vehicle is in power mode 6.
Dynamic Stability Control Indicator
The Dynamic Stability Control (DSC) indicator is illuminated by the instrument cluster on receipt of medium speed CAN bus signals from the CJB. The signal originates in the ABS module. The indicator is illuminated in an amber color for 3 seconds for a bulb check when the vehicle enters power mode 6. If no faults exist, the indicator is extinguished after the bulb check period.
When DSC is active, the indicator flashes to inform the driver that the system is regulating engine output and braking forces. If the indicator remains illuminated after the bulb check period or illuminates when driving, the DSC system has a fault or DSC has been deselected by the driver using the DSC switch on the floor console.
Hill Descent Control Active Indicator
The HDC active indicator is illuminated by the instrument cluster on receipt of medium speed CAN bus signals from the CJB. The signal originates in the ABS module. The indicator is illuminated in a green color when HDC is active and the vehicle speed is below a predetermined threshold. If the vehicle speed is faster than the threshold limit, the HDC indicator will flash until the vehicle speed is reduced. On high line instrument clusters a supporting message will also be displayed in the message center. For additional information, refer to Anti-Lock Control - Stability Assist Anti-Lock Control - Stability Assist
For additional information, refer to Information and Message Center Description and Operation
If the use of HDC causes the brake discs to exceed their pre-determined temperature, the HDC system initiates a 'fade out'. The HDC indicator flashes during 'fade out' and on high line instrument clusters a supporting message is displayed in the message center. When the brake discs have cooled sufficiently, HDC is reactivated and the HDC indicator is permanently illuminated.
Anti-theft Alarm Indicator
The anti-theft alarm indicator is controlled directly from the CJB via a hardwired connection. There is no software functionality within the instrument cluster to control operation of the anti-theft alarm indicator. For additional information, refer to Anti-Theft - Active Anti-Theft - Active
Glow Plug Indicator
The glow plug indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB. The signal originates in the diesel ECM and indicates the glow plugs are operational. The indicator will illuminate in an amber color when the vehicle enters power mode 6 and a glow plugs active signal is received from the ECM. When the combustion pre-heat procedure has been carried out, the ECM informs the instrument cluster to extinguish the glow plug indicator. For additional information, refer to Electronic Engine Controls - 2.2L Diesel
Overspeed Warning Indicator
The amber overspeed warning indicator is illuminated on receipt of a medium speed CAN bus signal from the CJB when the vehicle is in power mode 6. The vehicle speed signal originates in the ABS module and is the same as that used by the speedometer (see above).
The instrument cluster will flash the overspeed warning indicator at a rate of 2 Hz for 5 seconds if a speed of greater than 75 mph (120 kph) is reached. The first flash of the indicator will be accompanied by a chime from the instrument cluster. If the vehicle stays at this speed, the indicator will remain illuminated after the 5 second flashing period. The instrument cluster will extinguish the indicator if vehicle speed drops below 71 mph (114 kph).
CAR CONFIGURATION FILE
The car configuration file contains all relevant data about the specification and market condition of the vehicle, immobilization codes and driver personal settings. The master repository for this information is the CJB, with a back up being held in the instrument cluster. The information is continuously transferred between the 2 components to ensure the data is constantly backed-up.
CAUTION: When a new instrument cluster is to be installed, the Land Rover approved diagnostic system must be connected to the vehicle and the instrument cluster renewal procedure followed. This will ensure that vehicle coding data is correctly installed in the new instrument cluster. The Land Rover approved diagnostic system will also record the current service interval data and restore the settings in the new instrument cluster.
When a new instrument cluster is installed, the Land Rover approved diagnostic system is used to transfer the car configuration file data from the CJB to the replacement instrument cluster. Vehicle coding data such as engine type and market is retrieved and used to update the replacement instrument cluster.
The car configuration file will also need to be updated using the Land Rover approved diagnostic system if the vehicle is modified in service from its original factory specification. This can include fitting non-standard wheels and/or tires, or optional accessory dealer fit components with an electrical interface.
