Land Rover
>>
2010
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1BB01A - C1R214
>>

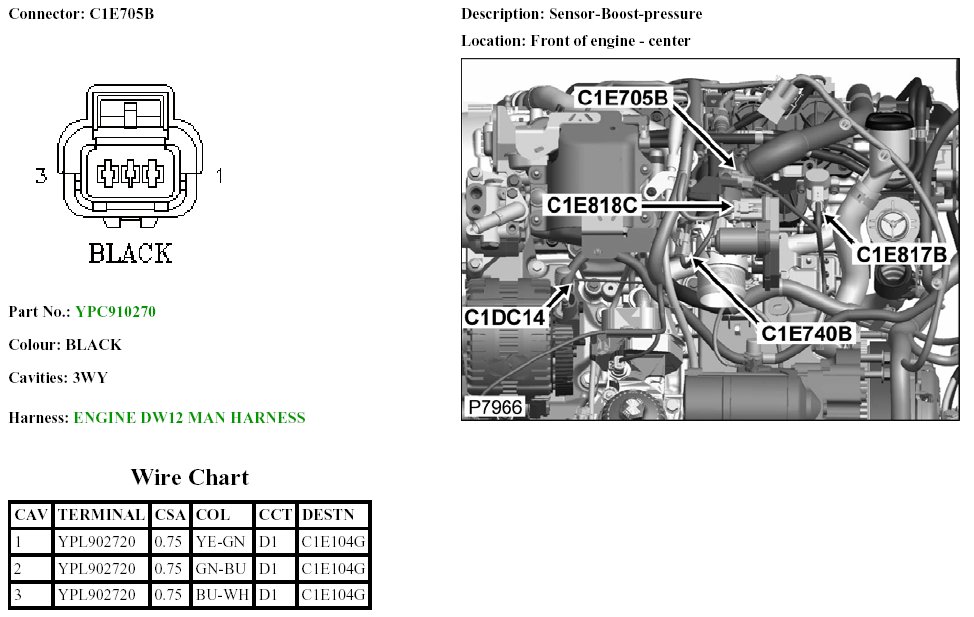

C1E705B
C1E705B
C1E705B
C1E705B:
