Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2010
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C11J - C3164
>>

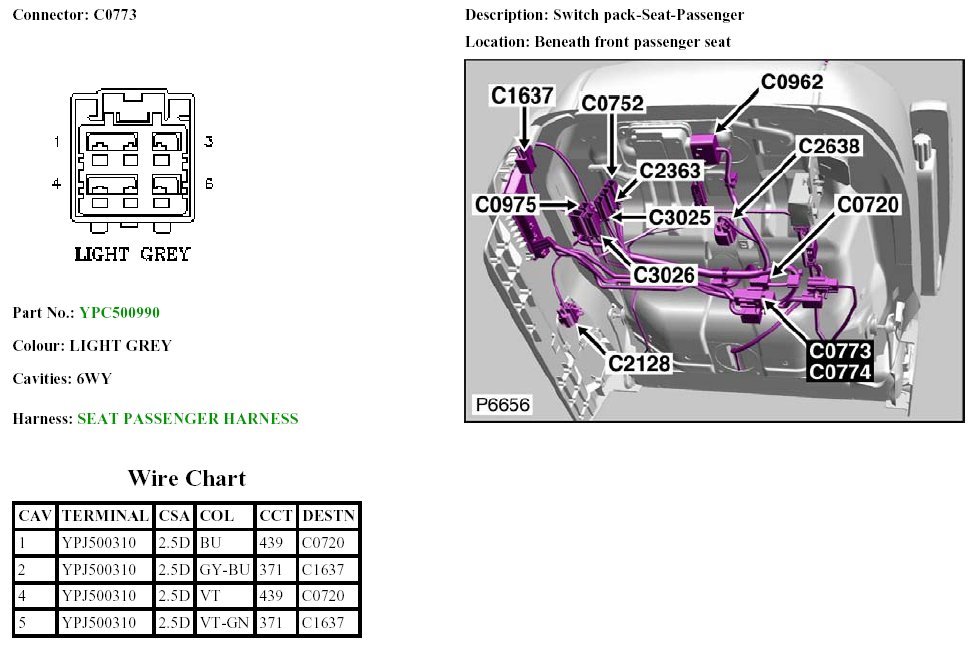

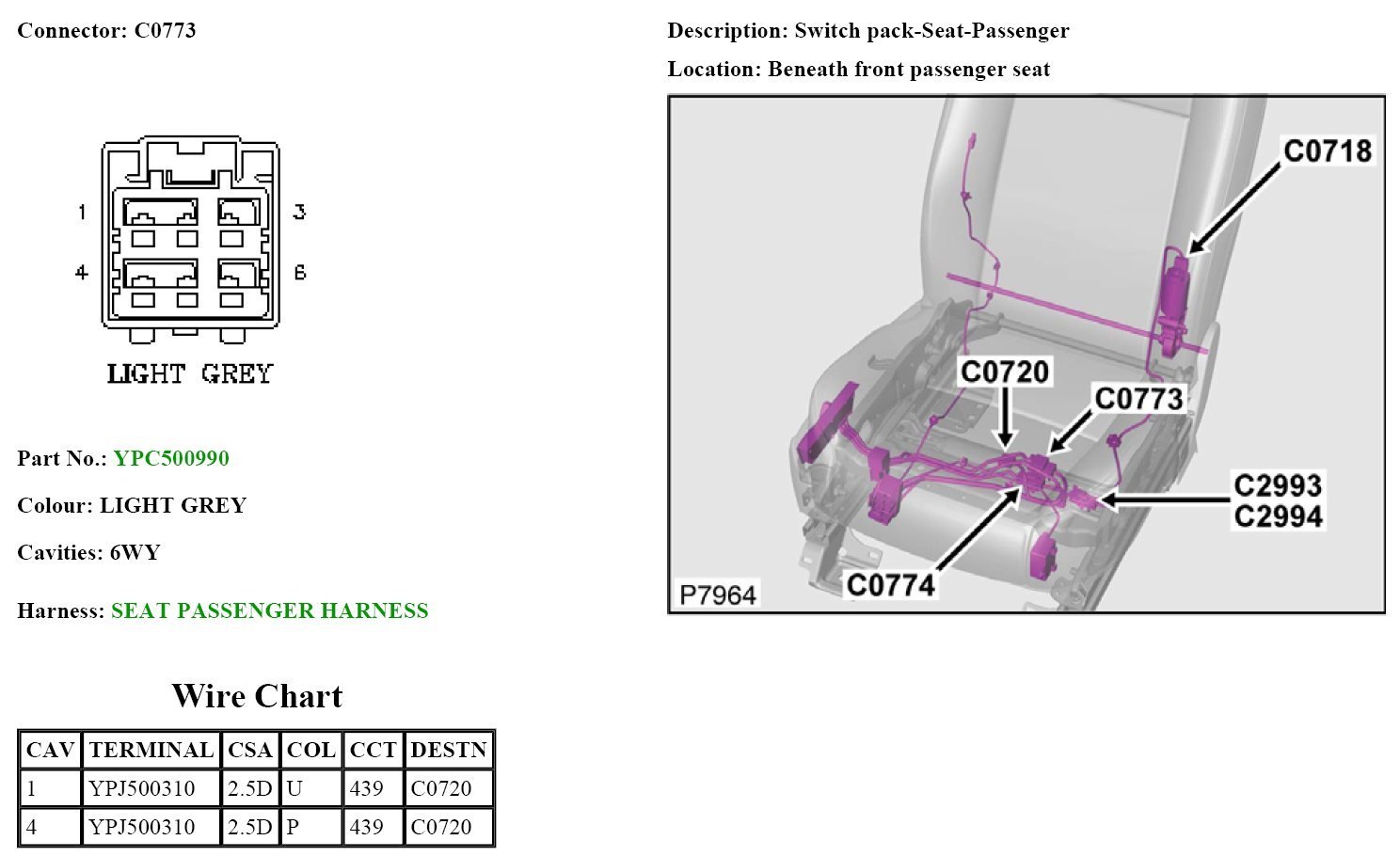

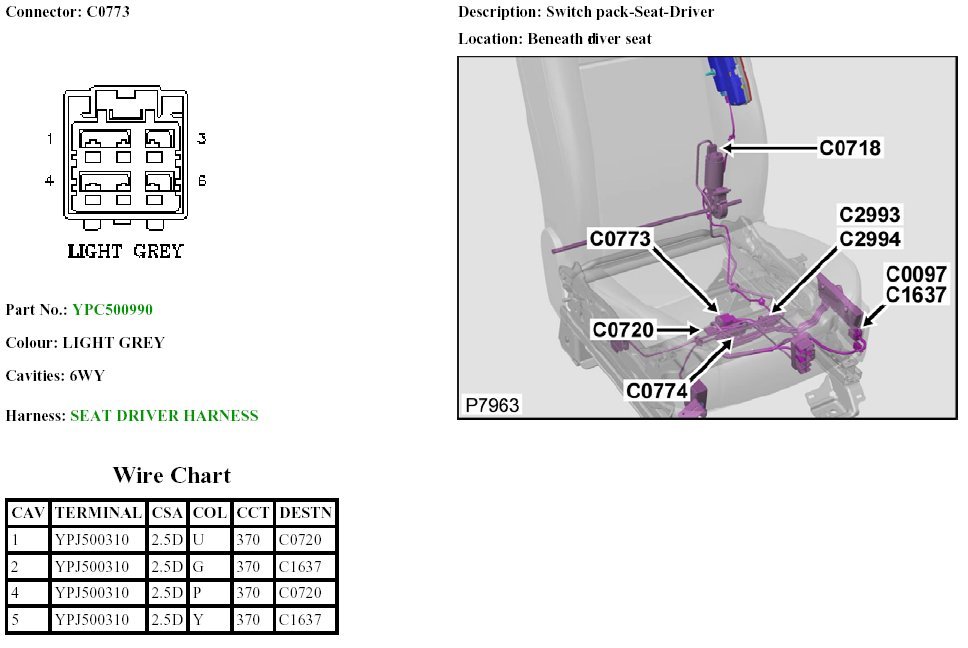

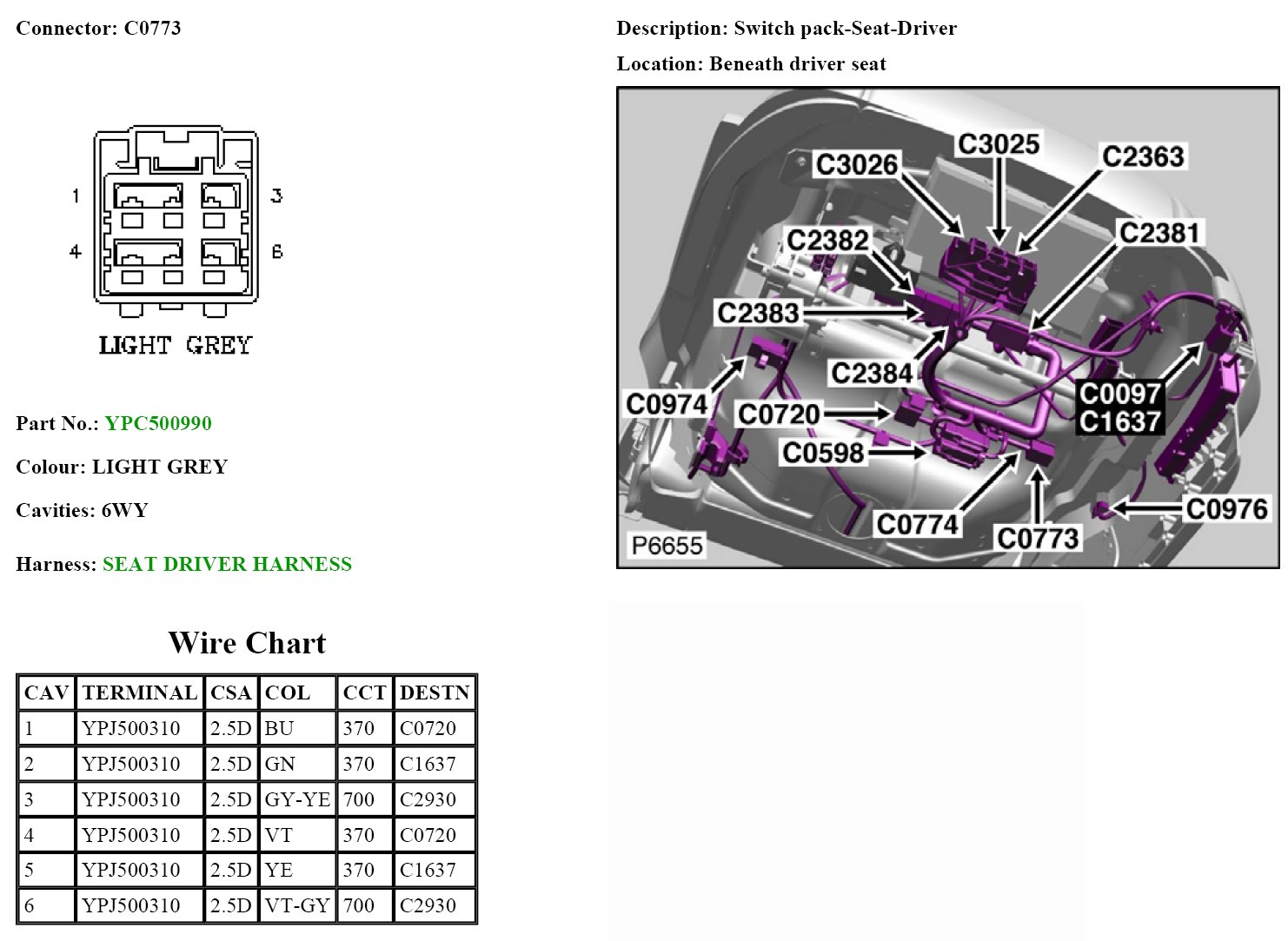

C0773
C0773
C0773
C0773:
C0773:
C0773:
C0773:
