Selector Shaft Seal

Selector Shaft Seal

Service Repair No - 44.15.34

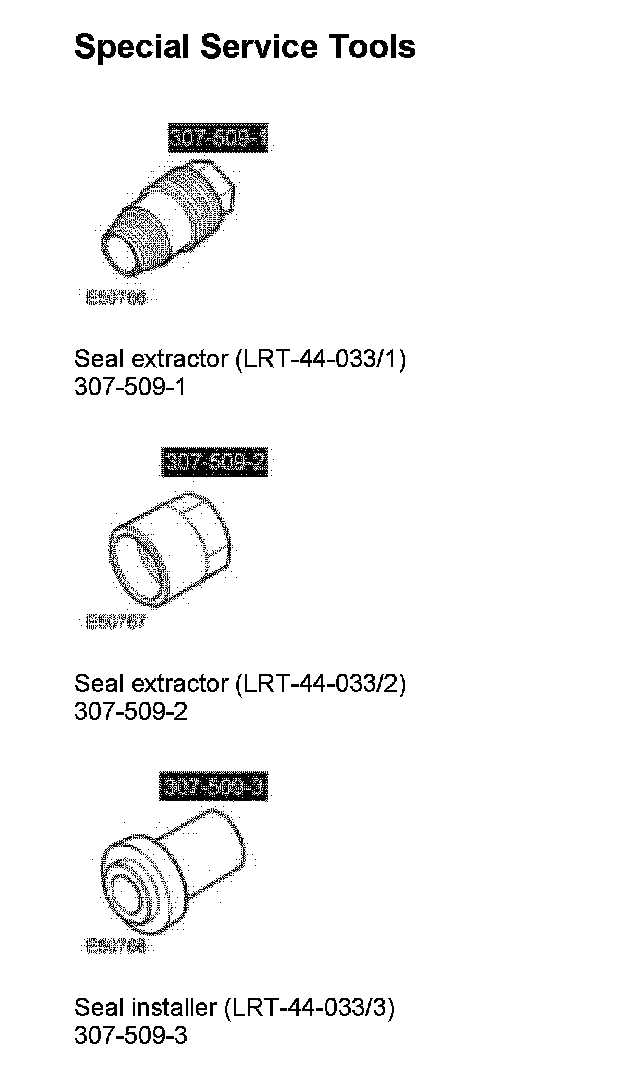

Special Service Tools





Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. RH side only: Release the selector cable and lever.
^ Remove the 2 bolts.
^ Remove the nut.





CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

3. Remove the selector shaft seal.
^ Install 307-509-1 to the seal.
^ Install 307-509-2 to 307-509-1 and extract the seal.





Installation
1. Using 307-509-3, install the selector shaft seal.
^ Clean the components.





2. RH side only: Install the selector cable and lever.
^ Tighten the nut to 12 Nm (9 ft. lbs.).
^ Tighten the bolts to 10 Nm (7 ft. lbs.).
