Passenger Side Register

Passenger Side Register

Removal

CAUTION: Care must be taken to avoid damaging the passenger side register internal components.

NOTE: Left-hand shown, right-hand similar.

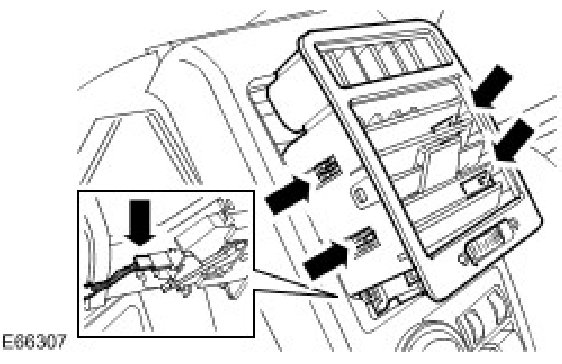

1. Remove the passenger side register.
- Carefully release the 4 internal clips, apply an even outward pressure until the last clip is released.
- Disconnect the electrical connector.







Installation
1. Install the passenger side register.
- Connect the electrical connector.
- Position and secure the clips.
