Center Registers

Center Registers

Removal

CAUTION: Care must be taken to avoid damage to the internal components of the center registers.

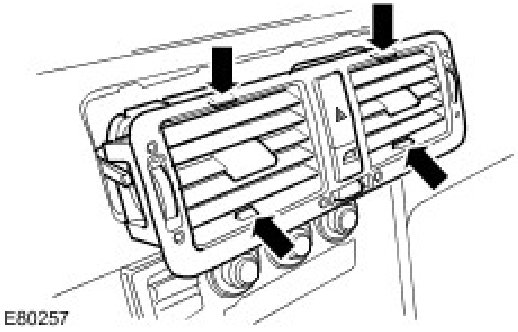

1. Release the center registers.
- Carefully release the 4 internal clips, apply an even outward pressure until the last clip is released.

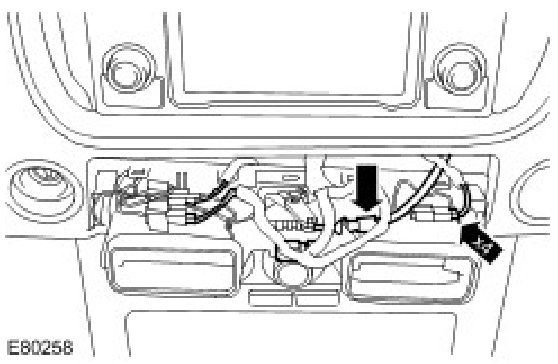

2. Remove the center registers.
- Disconnect the 4 electrical connectors.
- Release the temperature blend door control cable.







NOTE: Do not disassemble further if the component is removed for access only.

3. Remove the hazard flasher switch.

Installation
1. Install the hazard flasher switch.
2. Install the center registers.
- Attach the temperature blend door control cable.
- Connect the 4 electrical connectors.
- Position and secure the clips.
