Home
>>
Land Rover
>>
2009
>>
Range Rover (LM) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

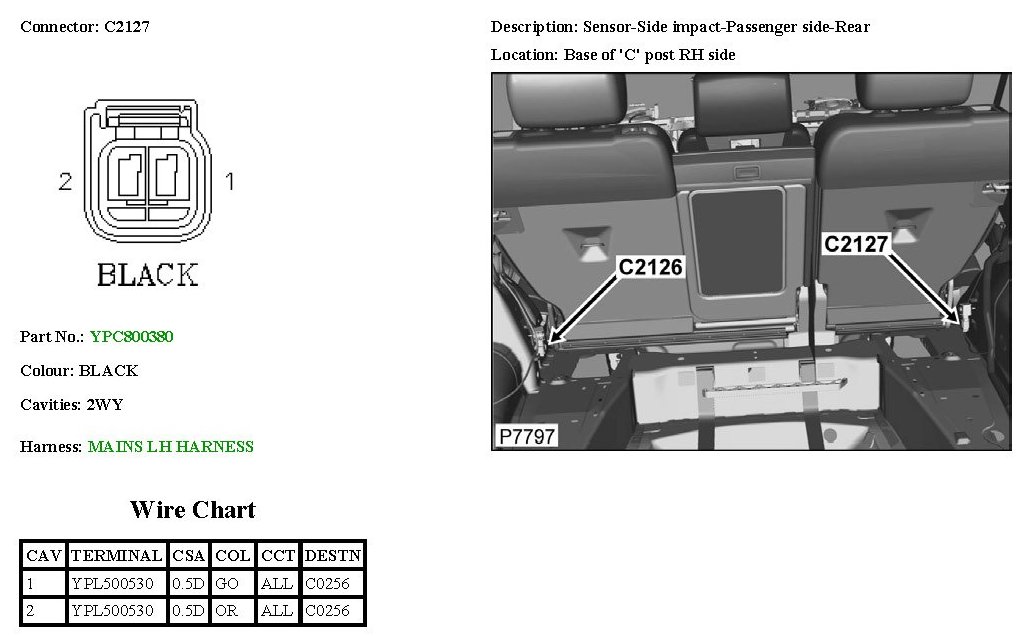

Sensor-Side Impact-Passenger Side-Rear
Sensor-Side Impact-Passenger Side-Rear
C2127:
