Land Rover
>>
2009
>>
Range Rover (LM) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C1701 - C1800
>>

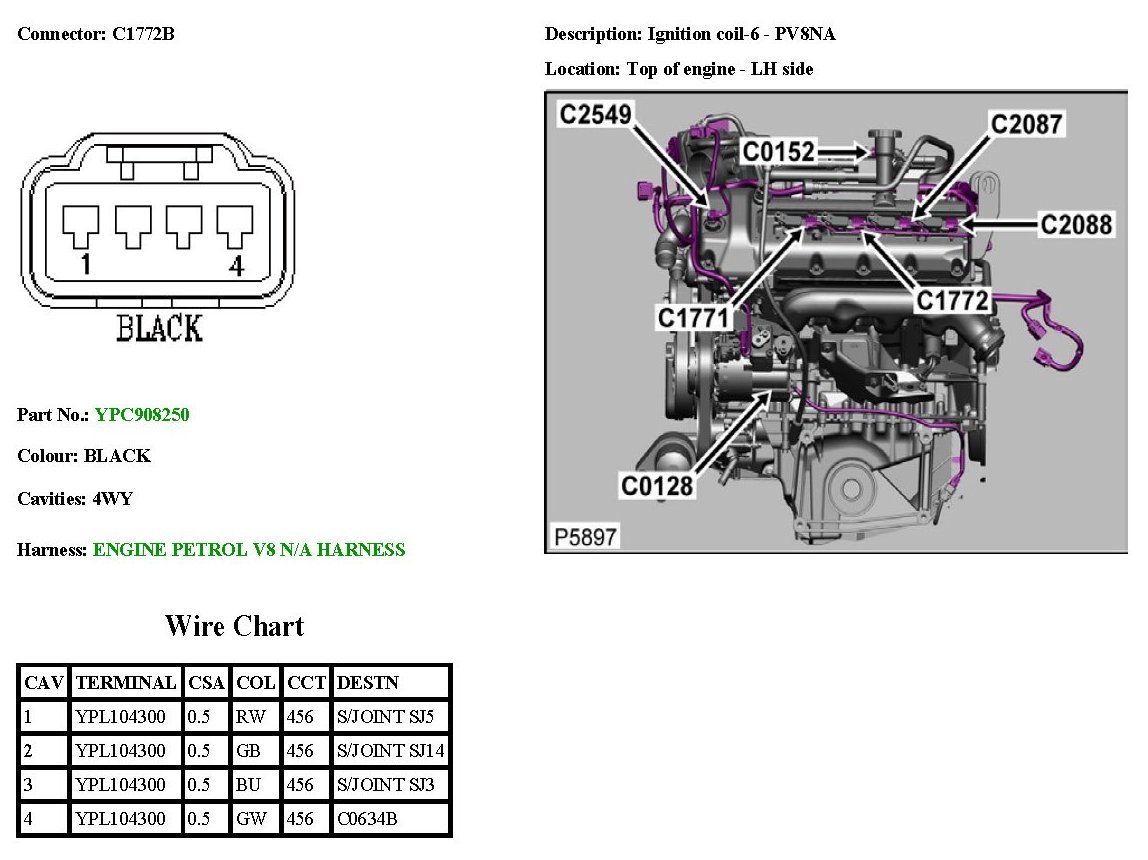

C1772B
C1772B
C1772B:
