Tire Pressure Monitoring System (TPMS) Rear Antenna

Tire Pressure Monitoring System (TPMS) Rear Antenna

Service Repair No - 86.53.17

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. Remove the rear wheel and tire.

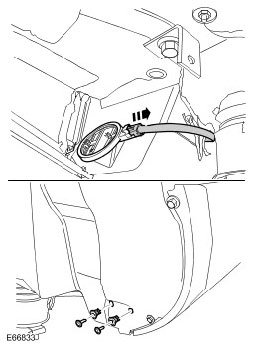

3. Remove the tire pressure antenna.
^ Disconnect the electrical connector.
^ Remove the 2 retainers.





Installation
1. To install, reverse the removal procedure.
2. Install the wheel and tire.
^ Tighten the wheel nuts to 140 Nm (103 ft. lbs.).

3. Initiate a new tire pressure antenna using T4.
