Front Parking Aid Speaker

Front Parking Aid Speaker

Removal
1. Remove the floor console extension.

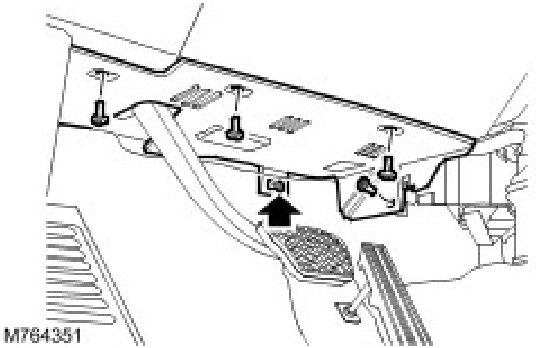

2. Release the driver side closing trim panel.
- Remove the 4 screws.
- Remove the clip.







3. Remove the driver side closing trim panel.
- Disconnect the 3 electrical connectors.







4. Remove the front parking aid speaker.

Installation
1. Install the front parking aid speaker.
2. Connect the electrical connectors.
3. Install the driver side closing trim panel.
- Install the screws.
- Install the clip.

4. Install the floor console extension.
