Upper Center Registers

Upper Center Registers

Removal

NOTE: Take extra care when releasing the clips.

1. Remove the upper center registers.

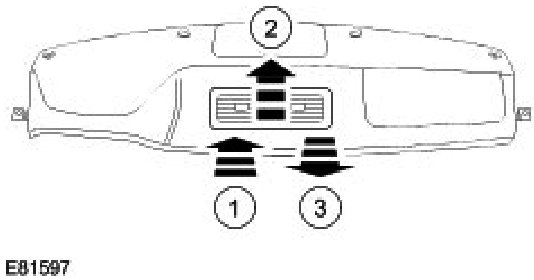

1. Reposition the upper center registers towards the instrument panel.
2. Release the 3 front clips.
3. Release the 2 rear clips.







Installation
1. Install the upper center registers.
- Secure the 5 clips.
