Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

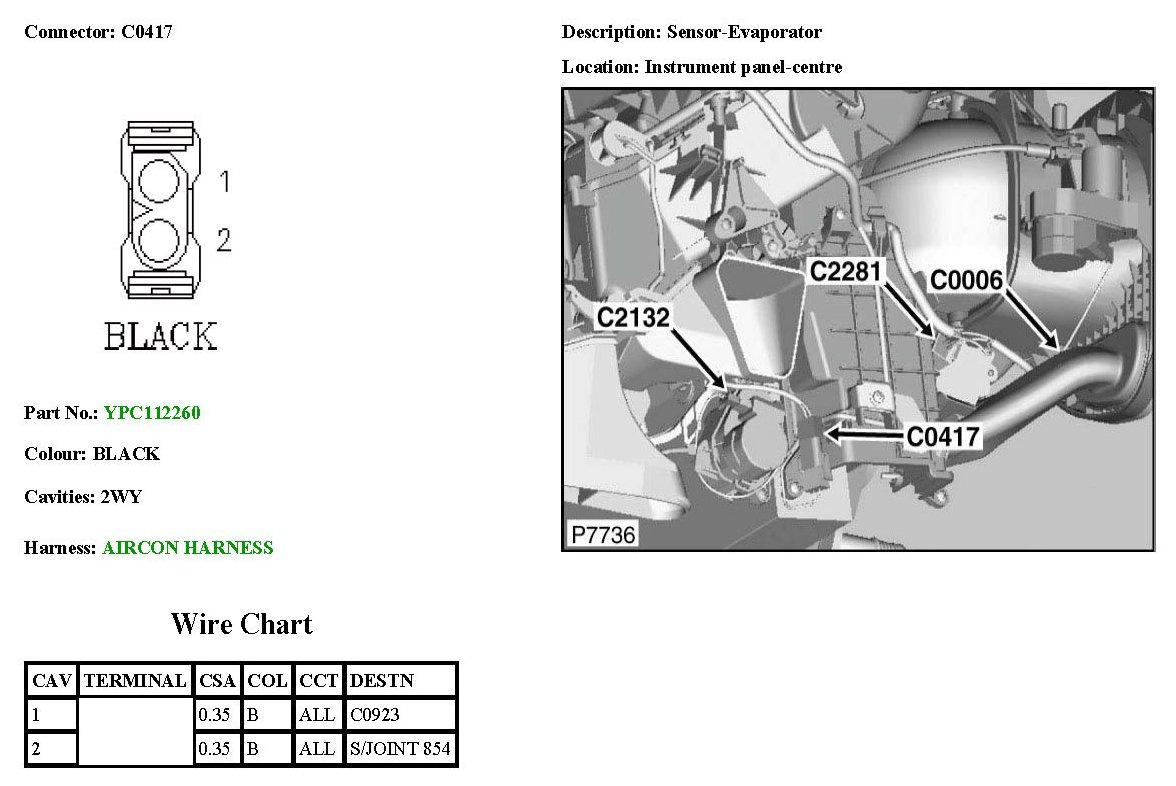

C0417:

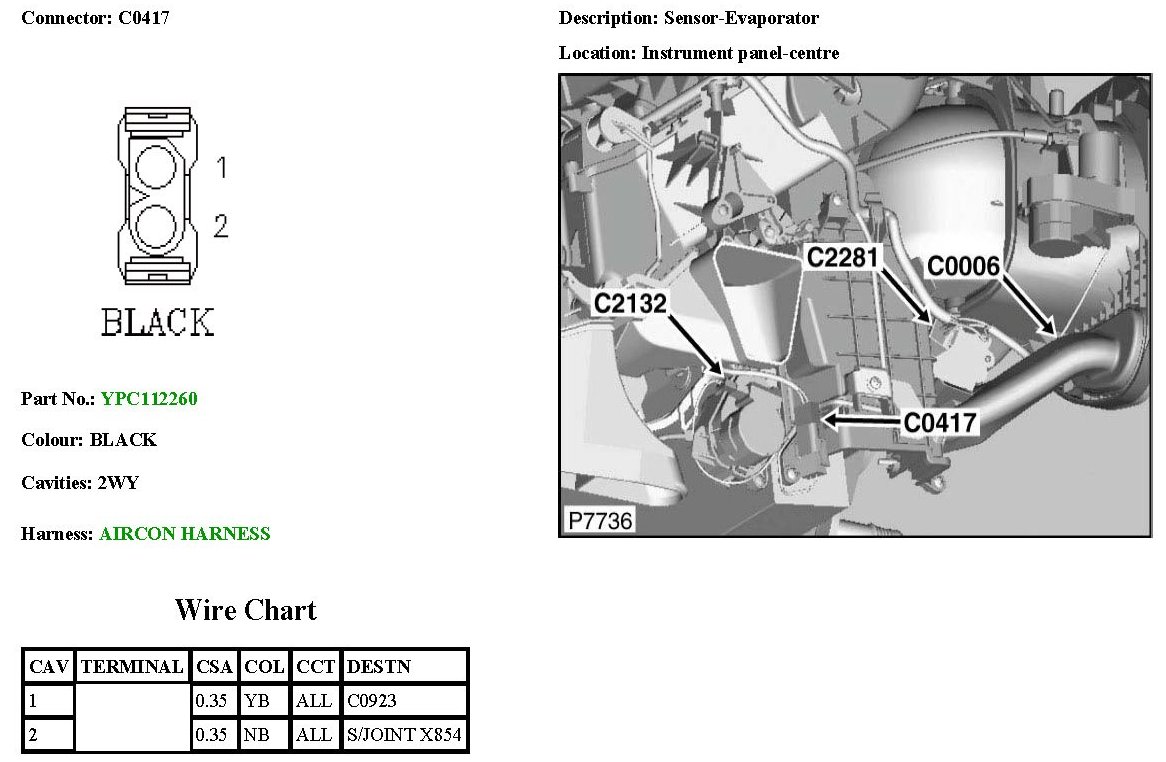

C0417:

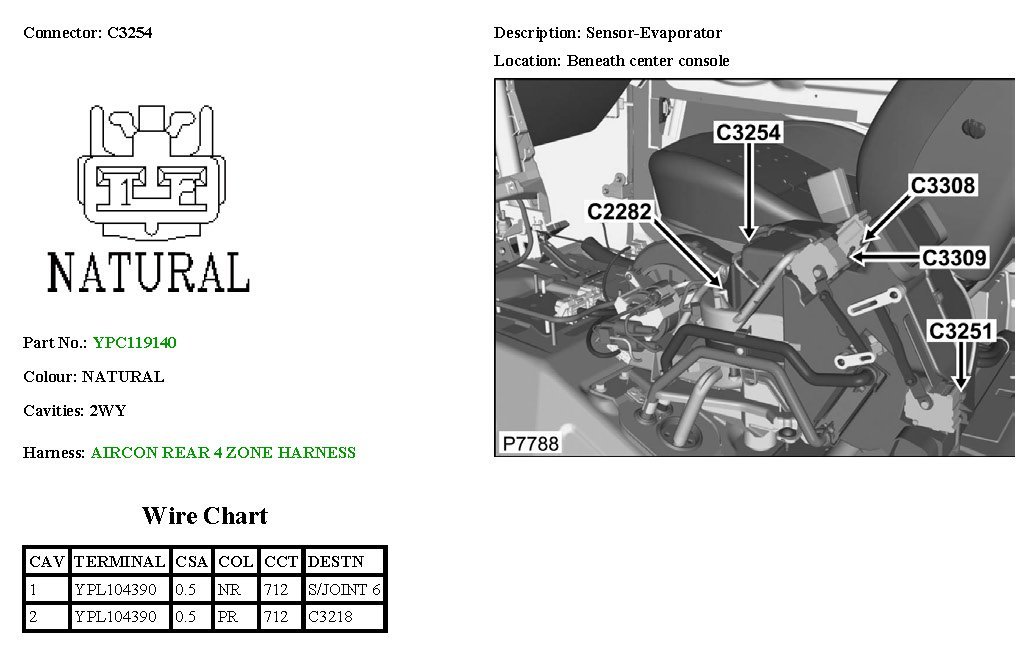

C3254:
