Land Rover
>>
2009
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0301 - C0400
>>

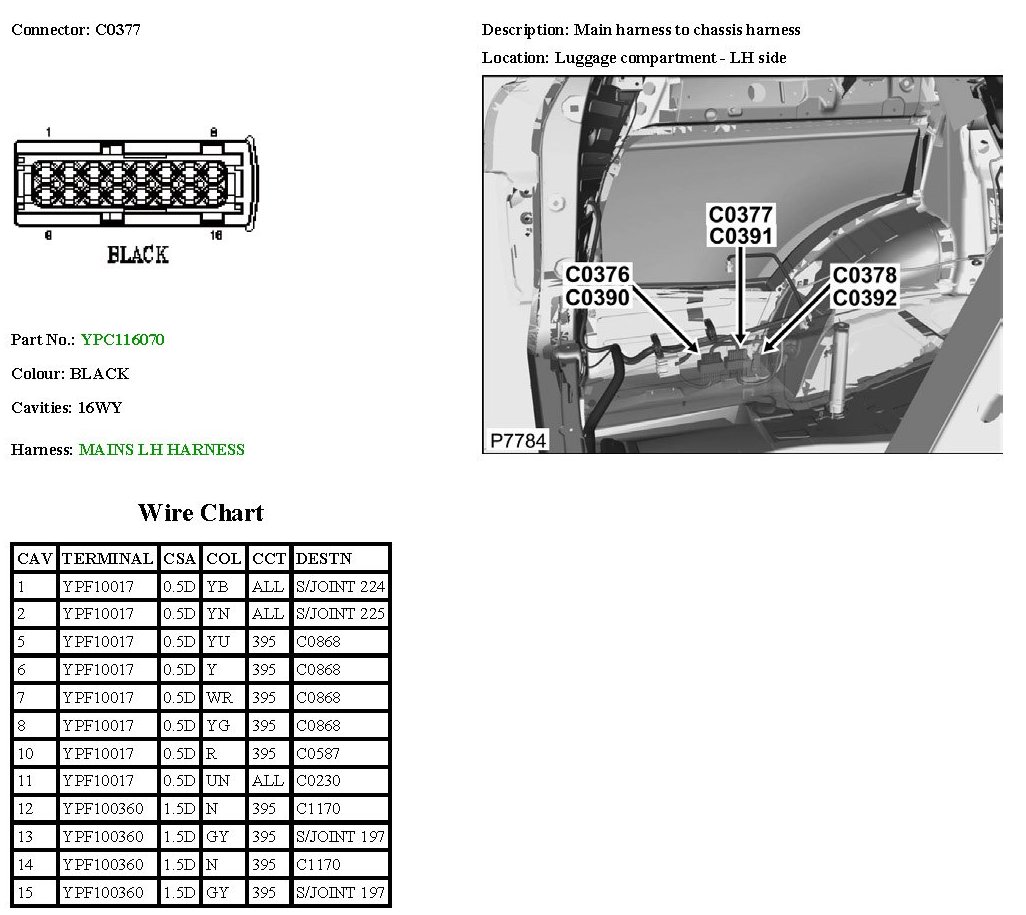

C0377
C0377
C0377:
