Tailgate Speaker

Tailgate Speaker

Removal
1. Remove the tailgate trim panel.

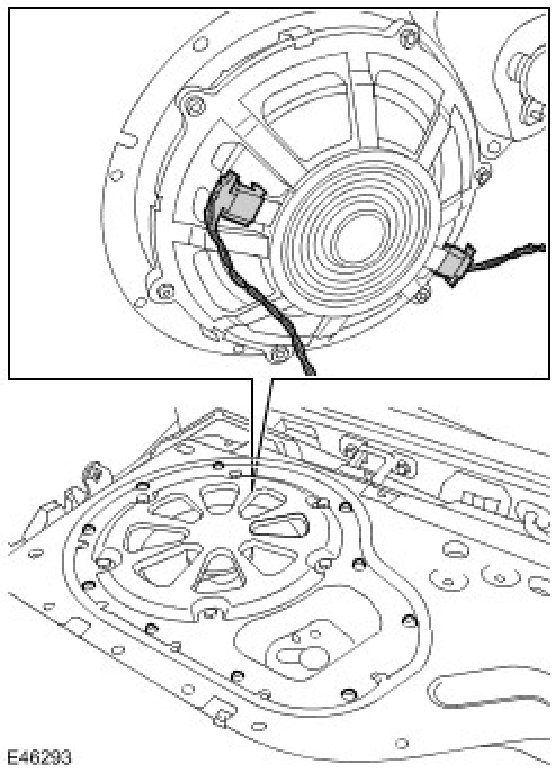

2. Remove the tailgate speaker assembly.
- Remove the 10 Torx bolts.
- Disconnect the 2 electrical connectors.







NOTE: Do not disassemble further if the component is removed for access only.

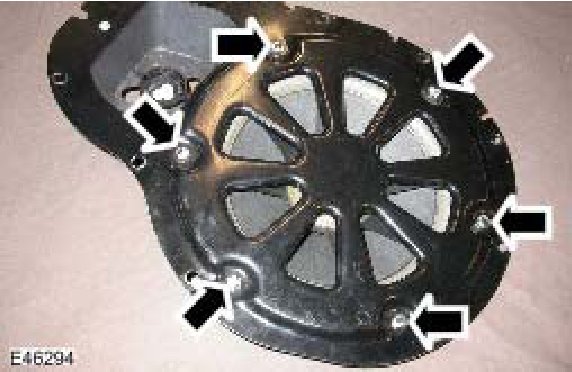

3. Remove the tailgate speaker.
- Remove the 6 bolts.







Installation
1. Install the tailgate speaker.
- Tighten the bolts to 10 Nm (7 lb.ft).

2. Install the tailgate speaker assembly.
- Connect the electrical connectors.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).

3. . Install the tailgate trim panel.
