Instrument Panel Speaker



Instrument Panel Speaker

Removal
1. Remove the instrument panel center speaker grille.

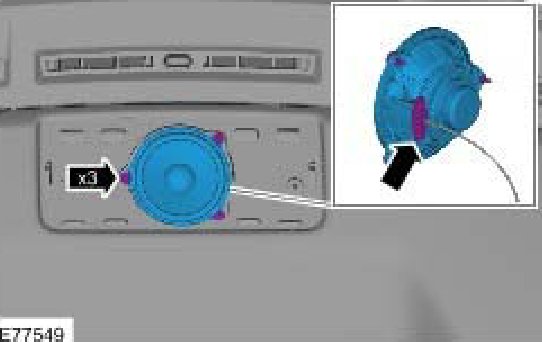

2. Remove the instrument panel speaker.
- Remove the 3 screws.
- Disconnect the electrical connector.







Installation
1. Install the instrument panel speaker.
- Connect the electrical connector.
- Tighten the 3 screws.

2. Install the instrument panel center speaker grille.
