Front Door Speaker



Front Door Speaker

Removal
1. Remove the front door trim panel.
2. Remove the front door speaker wiring harness.

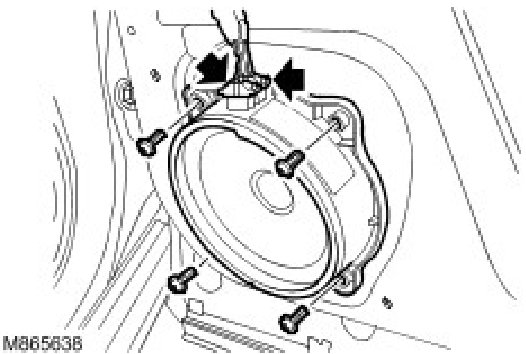

3. Remove the front door speaker.
- Remove the 4 screws.
- Disconnect the electrical connector.







Installation
1. Install the front door speaker.
- Connect the electrical connector.
- Install the screws.

2. Install the front door speaker wiring harness.
3. Install the front door trim panel.
