Passenger Side Register Trim Panel

Passenger Side Register Trim Panel

Service Repair No - 76.46.13

Removal

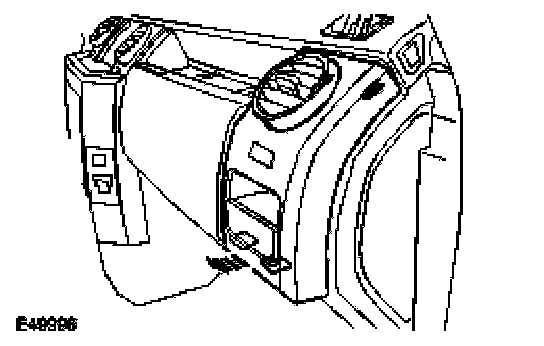

1. Remove the passenger side register trim panel.
^ Release the 2 clips.





NOTE: Do not disassemble further if the component is removed for access only.

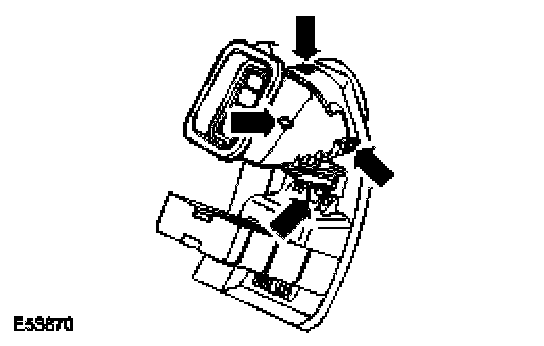

2. Remove the register.
^ Release the 4 clips.





3. Remove the cup holder.
^ Remove the 4 Torx screws.





Installation
1. Install the cup holder.
^ Tighten the Torx screws.

2. Install the register.
^ Secure with the clips.

3. Install the passenger side register trim panel.
^ Secure with the clips.
