Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

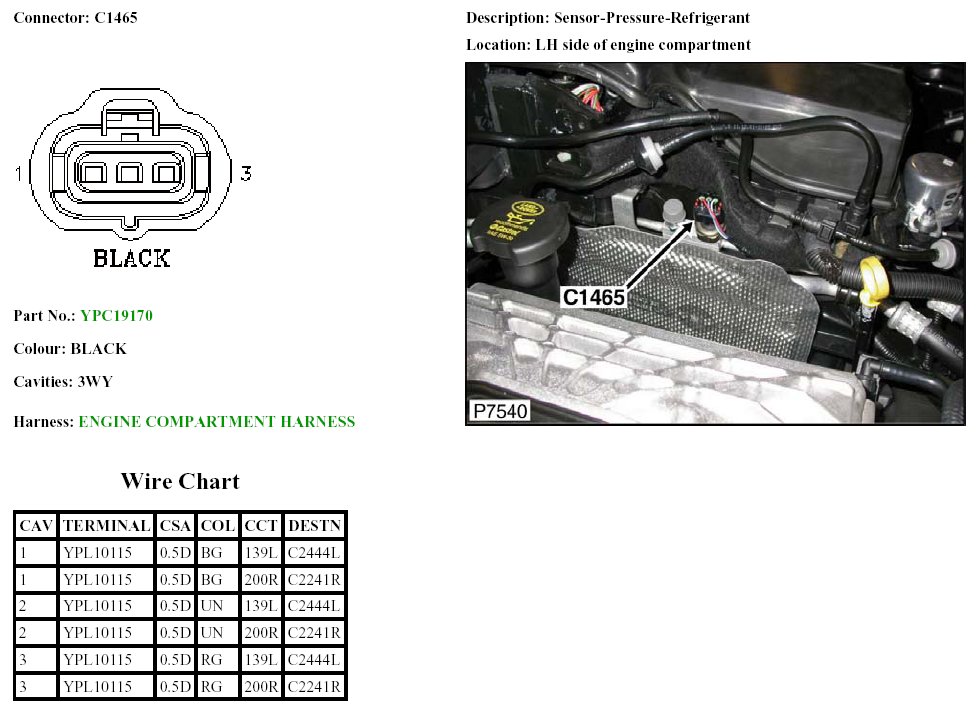

Sensor-Pressure-Refrigerant
C1465:
