Rear Automatic Temperature Control Module
Rear Automatic Temperature Control Module
Rear Automatic Temperature Control Module

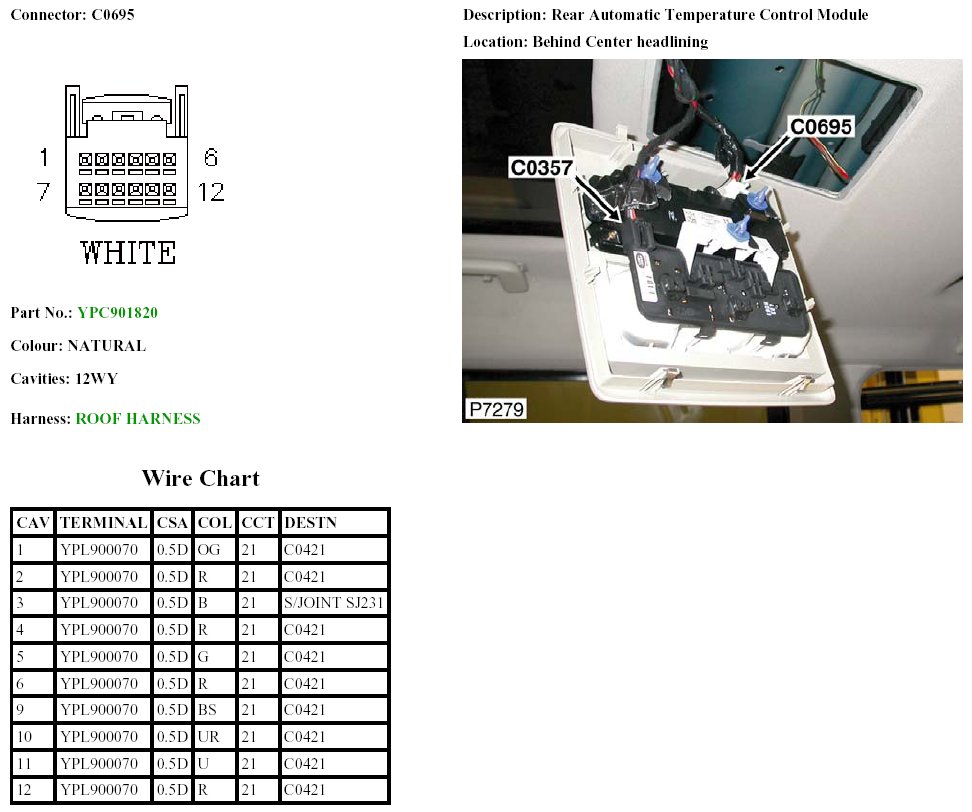

C0695:
