Front Suspension

Front Shock Absorber (60.30.02)

Removal

WARNING: Ensure the spring compressor Safe Working Load (SWL) meets or exceeds the spring rating quoted in the Specifications.

WARNING: Always follow the spring compressor manufacturer's instructions.

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
2. Remove the road wheel.
3. Remove the spring and damper assembly.
4. Install the spring compressor in a vise.
5. Install the shock absorber and spring assembly in the spring compressor.

6. WARNING: Make sure that a new nut is installed.





Installation

1. WARNING: Make sure that a new nut is installed.

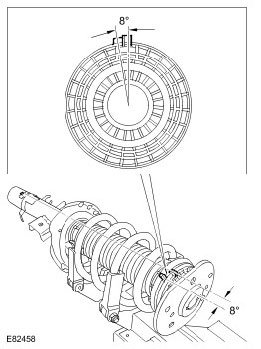

WARNING: It is imperative that the timing marks are aligned as shown in illustration.

Torque:
80 Nm





2. Release the tension from the spring and damper assembly and remove from the special tool.
3. Remove the spring compressor from a vise.
4. Install the spring and damper assembly.
5. Install the road wheel.
