Power Steering Fluid Cooler: Service and Repair

Power Steering Fluid Cooler

Service Repair No - 57.15.11

Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the front wheels and tires.
3. Remove the front bumper.
4. Remove the RH headlamp assembly.

5.





6. Release the power steering fluid reservoir.
Disconnect the quick release connector.

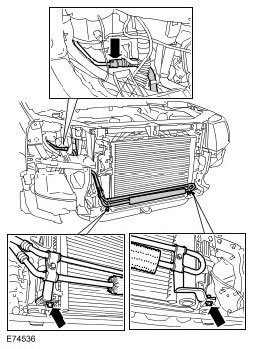

7.
Torque:
10 Nm





Installation

1. To install, reverse the removal procedure.
2. Check and top-up power steering fluid level.
