Table of Circuit Option Codes

TABLE OF CIRCUIT OPTION CODES

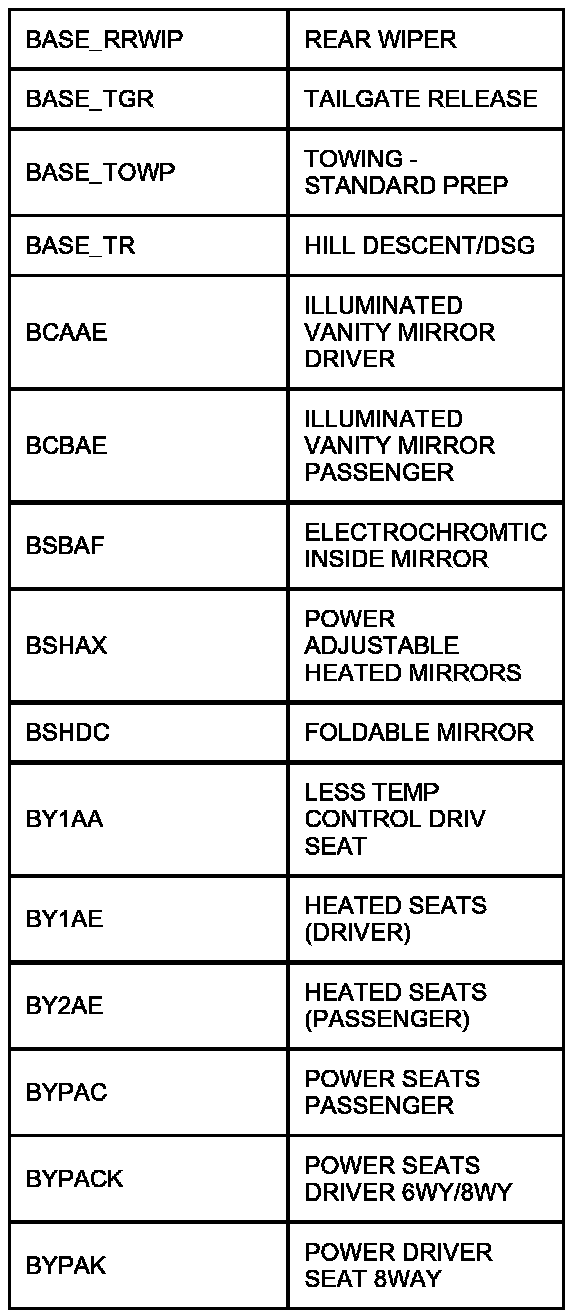

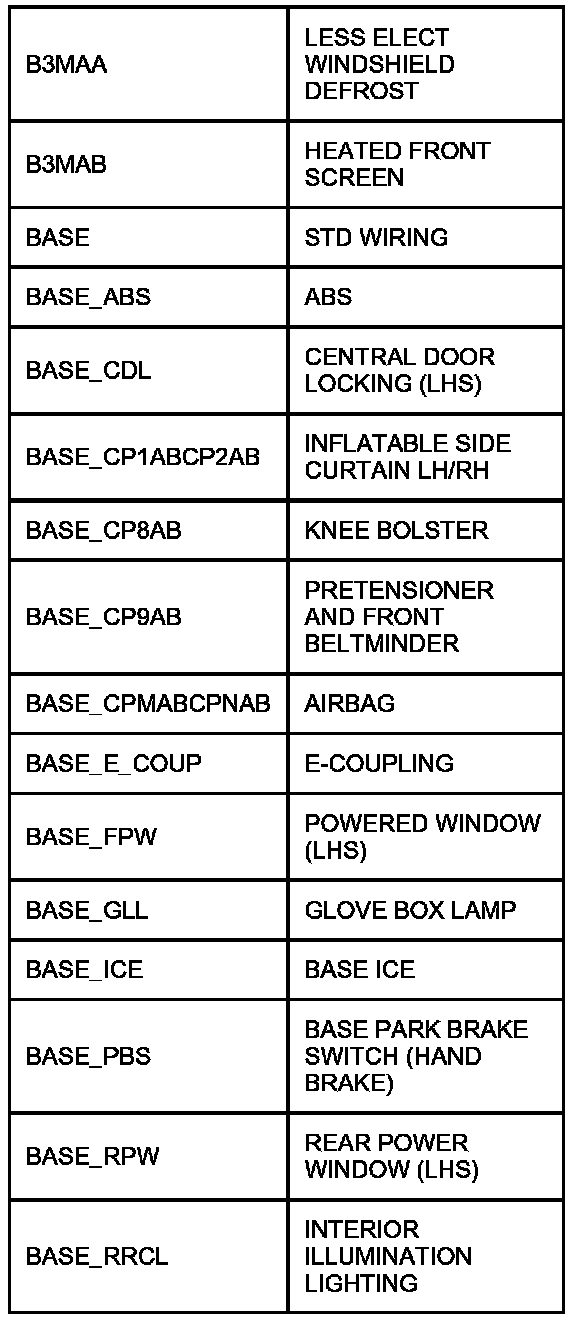

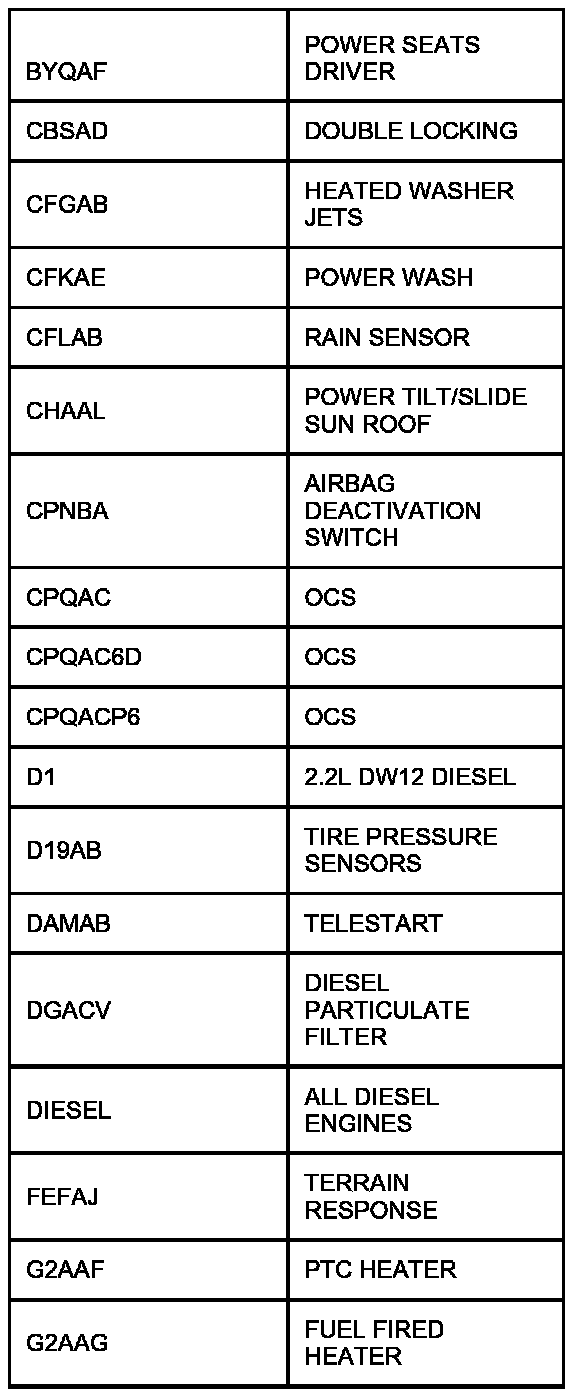

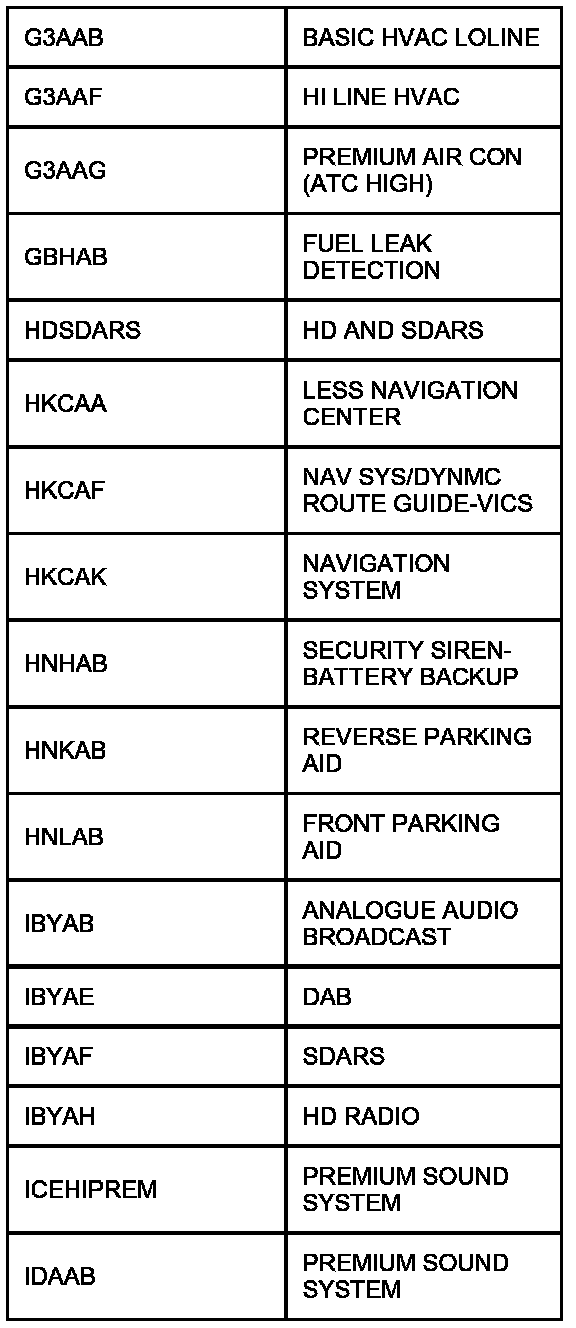

The following table contains a list of circuit (Cct) reference numbers against a description of the applicable model or option. This information should be used in conjunction with the connector pin-out tables to determine the wire configuration of the vehicle under test.
